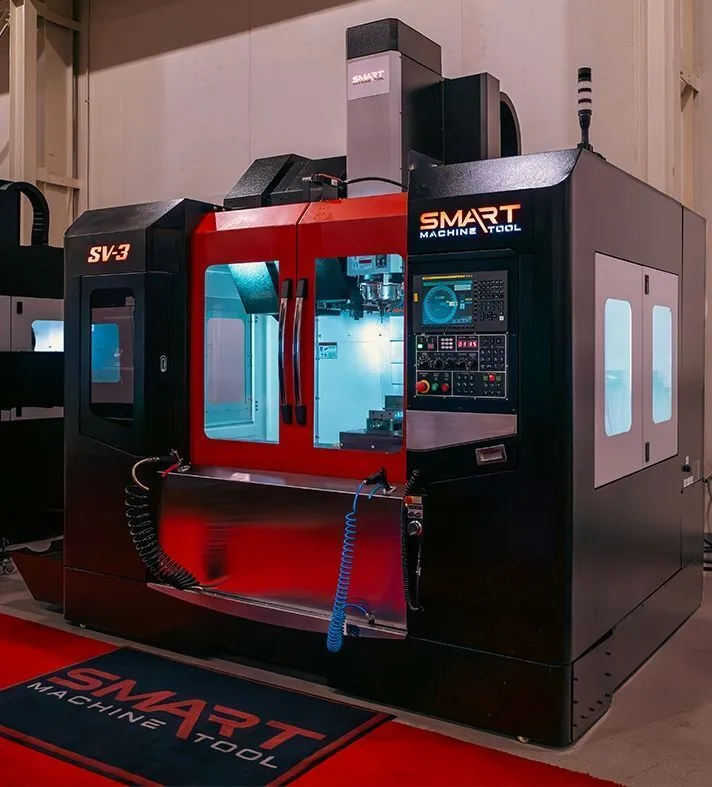

NEW SMART MACHINE TOOL SV 3
Overview
Cat 40 12,000 rpm Big Plus Spindle
41"x20" Travels
1417 ipm Rapid Traverse Rate
Probe Ready
Specs
SV 3
CAPACITY
X axis travel 41.34”
Y axis travel 20.47”
Z axis travel 20.47”
Table size 45.28” x 19.69”
Table loading capacity 1,764 lbs.
SPINDLE
Distance from table top to spindle nose 4.92” – 25.39”
Distance from Z axis telescopic cover to spindle center 20.47”
Spindle taper CAT40 (BIG PLUS)
Spindle speed 12,000 rpm
AC Spindle motor 20/25 hp
Spindle Torque (30 min) 87 ft.-lbs.
AUTO TOOL CHANGER
Magazine capacity 30
Tool shank CAT40 (BIG PLUS)
FEED RATE
Rapid traverse (X / Y / Z) 1,417 ipm
Cutting feedrate ipm 394 ipm
Slide Ways Linear Way
COOLANT TANKS
Front Tank Capacity 36.98 gallons
Side Tank Capacity 68.68 gallons
GENERAL
Floor space (L x W) (with conveyor) 148.23” x 83.50”
CNC Model Fanuc 0i-MF Plus (15” screen)
Equipped With
30 Tools Double Arm ATC
Coolant Bed Flush
Rigid Tapping
Big Plus Spindle
Manual Guide i
Lift Up Conveyor
Add $5,000 for the Smart Value Package as Follows:
Renishaw Receiver and GUI software
280 PSI CTS
Air Thru Spindle
4 Axis Preparation
Coolant/Air Gun
Spindle Oil Cooler
High Speed Machining, 200 Look Ahead
