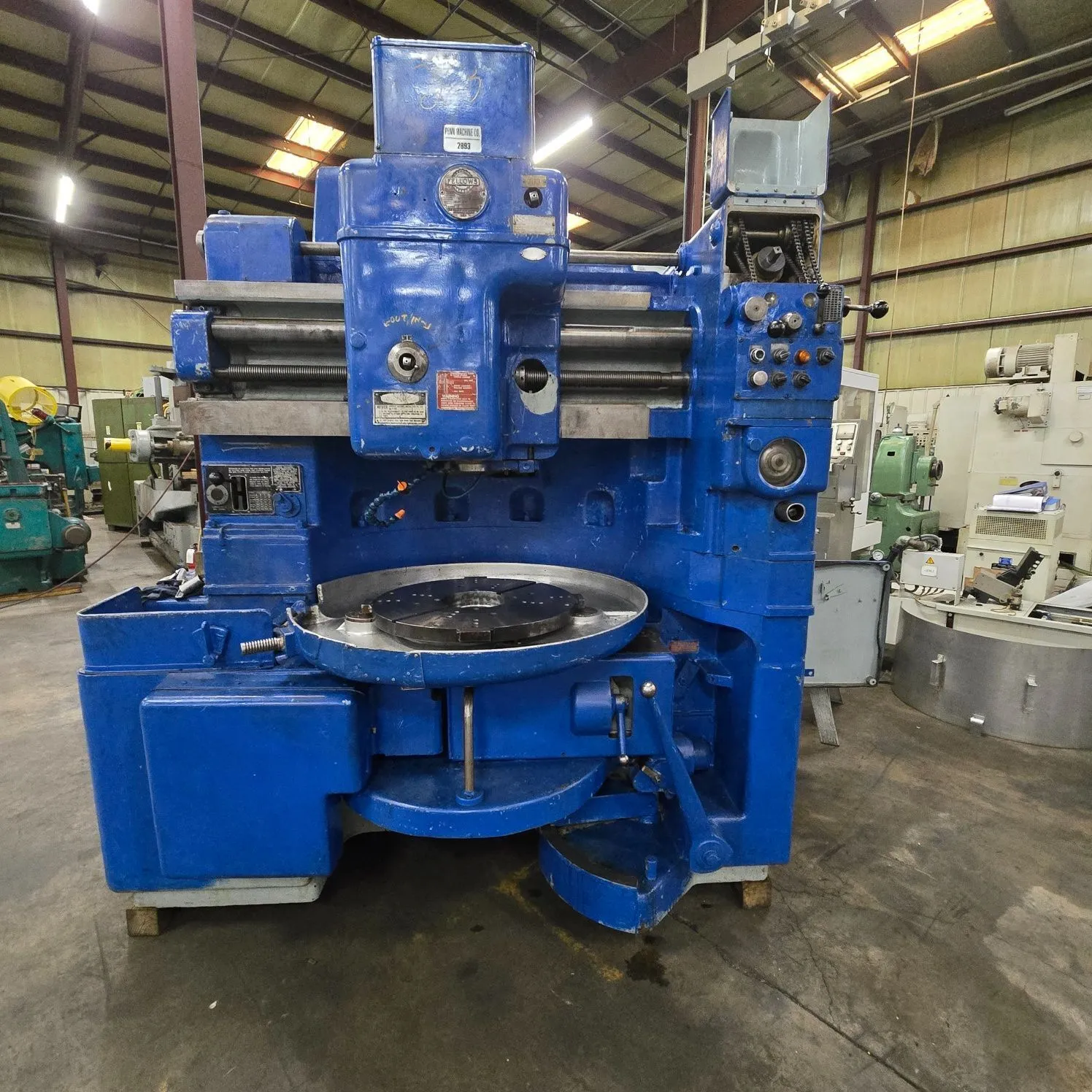

USED FELLOWS 36-6

Fellows Gear shaping Machine
Model 36-6, S/N 28923
Equipped with 6" riser

This machine is equipped with a 6" riser w 4" spindle.
The machines are capable of shaping both Internal and External
spur gears with present spur Guides.

MACHINE SPECIFICATIONS:
* Maximum Pitch Diameter External 40"
* Maximum Pitch Diameter Internal 36"
* Maximum Workpiece & Fixture Diameter 44"
* Maximum Face Width 6"
* Stroke Length 6"
* Maximum Helix Angle ( with proper guides) 45 deg
* Maximum Diametral Pitch:
-For Spur Gears 3 DP
-For Helical 4/5 DP
* Work Spindle Bore Diameter 5.875"
* Twelve (12) Stroking Speeds, w/ranges 18-300 spm
* Machine Dimensions 92" x 60" x 110"H
* Machine Weight, Approx 19,000 Lbs

Machine Is Equipped With:
6" Riser Assembly w/ 17" clearance height
4" spindle diameter
Misc. Change Gears
1 Cutter Adapter as photographed
1 extension adaptor per inventory
Books and manuals

Machine can be inspected under power with proper notice In our statesville NC
warehouse gone through and in very good condition !
Send us your part prints to confirm what you require on this machine.
Visit our website at www.PiselliEnt.com to request formal quote
and pricing . Contact rich piselli at [email protected] to set up an inspection.
we have many shaping machines in stock so if this one doesnt fit your requirement
just give us a call at (704) 609-0766 and lets find one that does!!
