Gould & Eberhardt Model 48HL Heavy duty hobber , 2.5 DP, 32" table , 25" travel w/ 22" centers 34" under tailstock, good condition , s/n 5300A4
| Max Workpiece Diameter | 48" | 1,219.2 mm |
| Max Diametral Pitch | 2 dp | 2 dp |
| Horz/Vert | Vert | Vert |

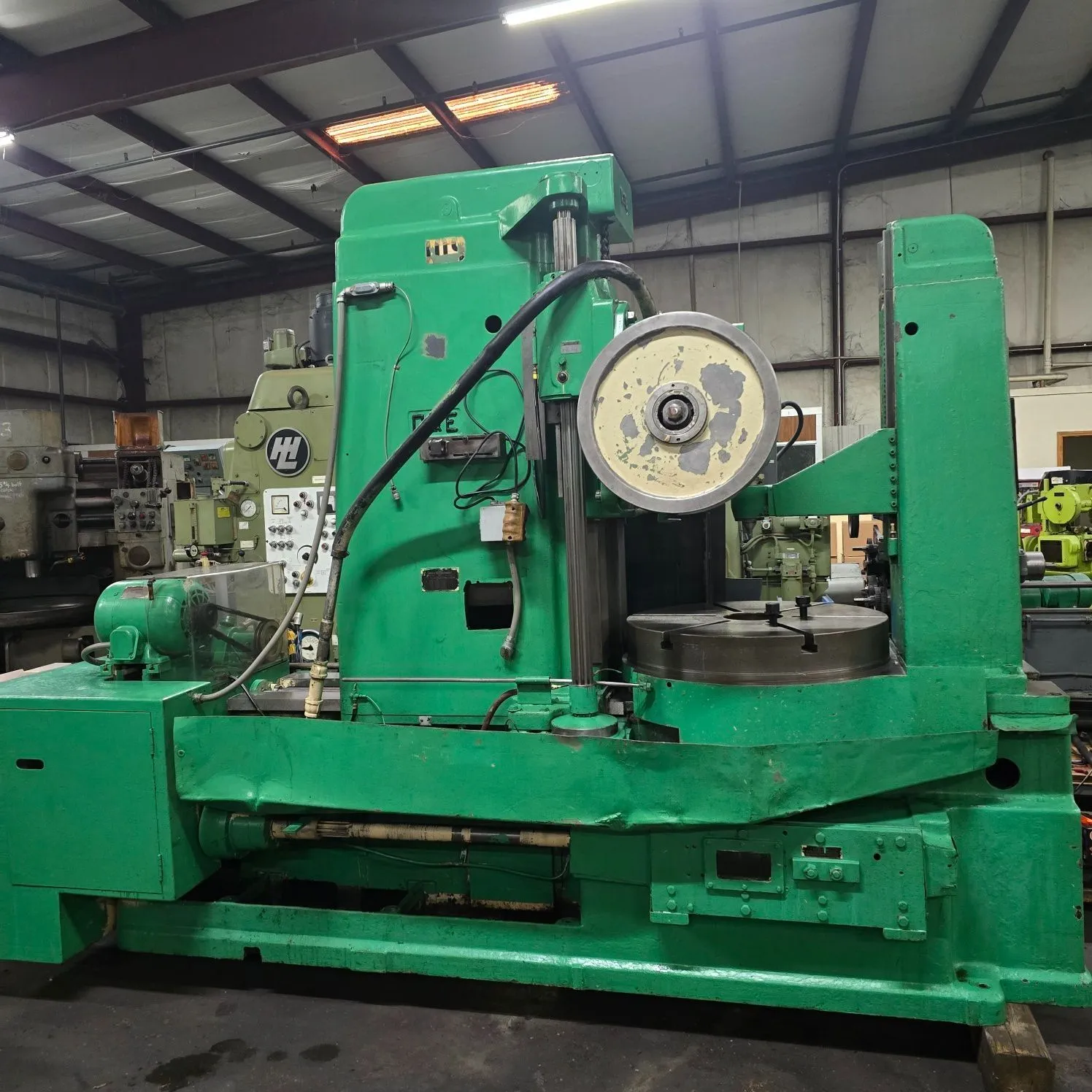

Gould & Eberhardt vertical Gear hobber
Model 48HL
s/n 5300A4
good running condition in plant
machine specicifactions:
max diameter 44"
max face width 18"
Max travel of hob slide 25"
max pitch 2.5 DP
Max center distance 22"
Max Diameter Hob 7.5"
Table Diameter 32"
Table bore diameter 7"
maachine weight 18,000 lbs
Machine is equipped with the following
Heavy duty spur cutting head w/ flywheel
extended face travel
pushbutton controls
tailstock w/ 34" under center
assortment of change gears
hob arbor 1-1/4"
Machine can be inspected in our NC shop in good running condition
Inspect it in north carolina plant. contact us to set up
an inspection at earliest convenience. or visit our website at
WWW.Pisellient.com or contact rich piselli at 704 609-0766
