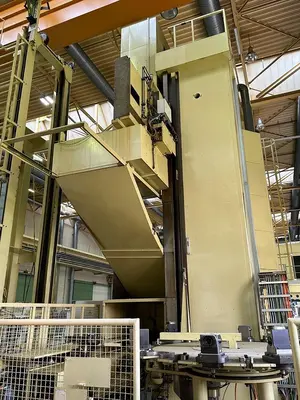

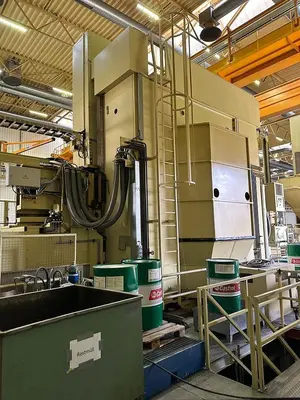

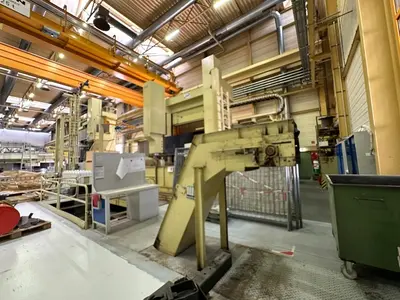

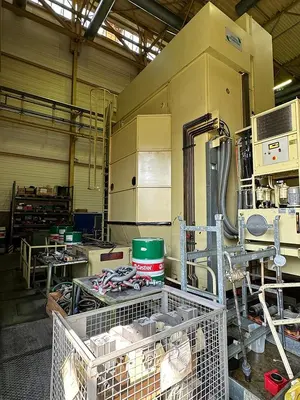

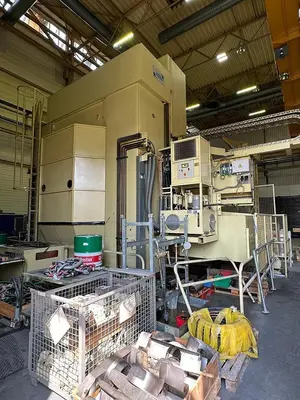

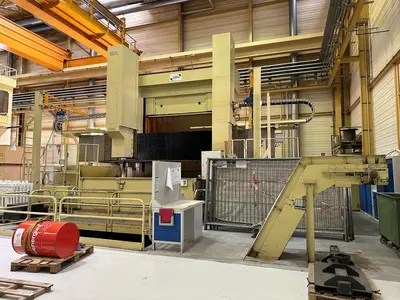

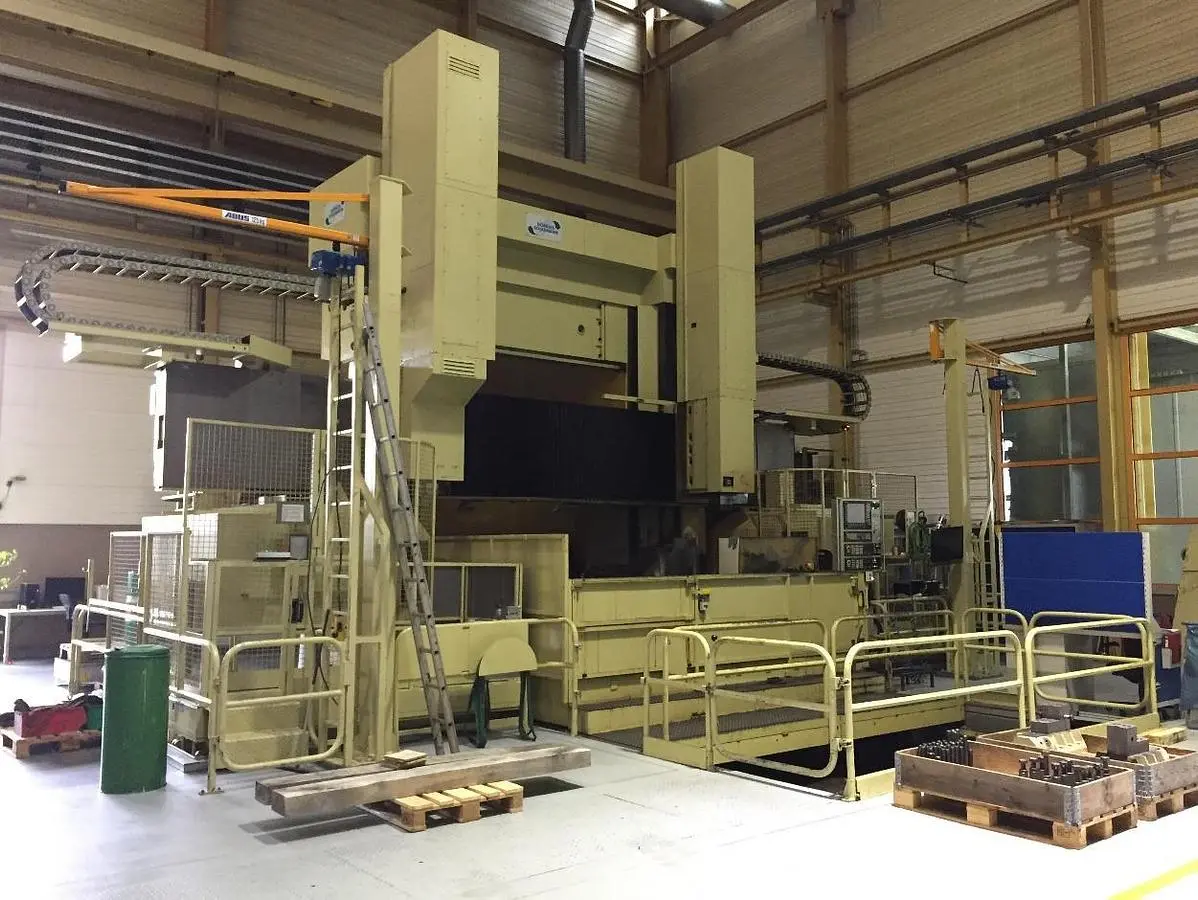

USED 2015 DORRIES SCHARMANN CONTUMAT 3 MC: VC 4200/360
Overview
Rebuilt & Retrofitted in 2015

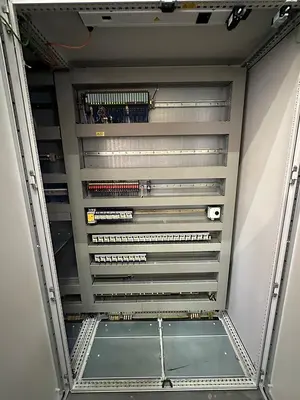

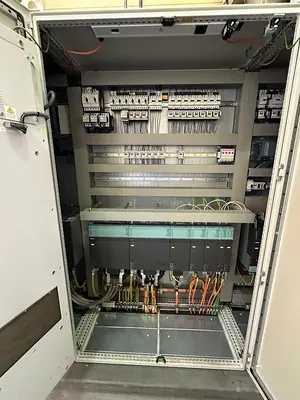

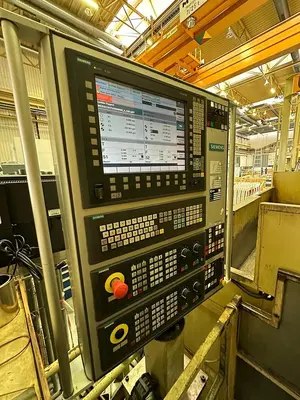

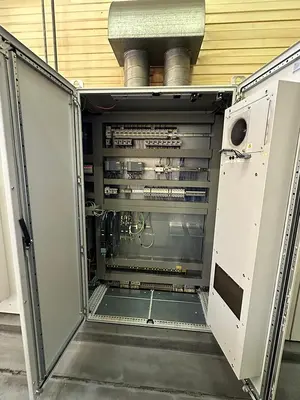

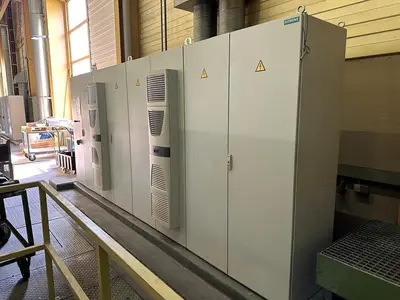

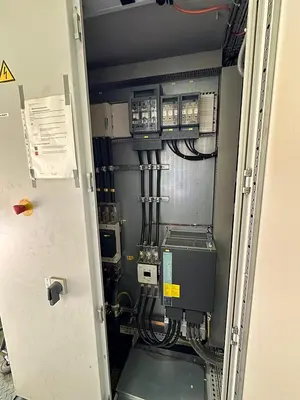

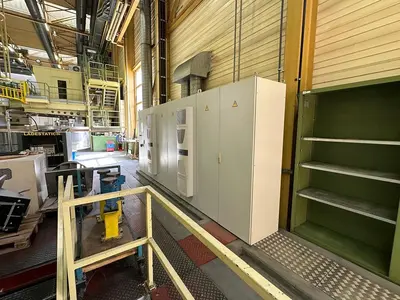

New Electrics & New Siemens 840 Dsl CNC Control,

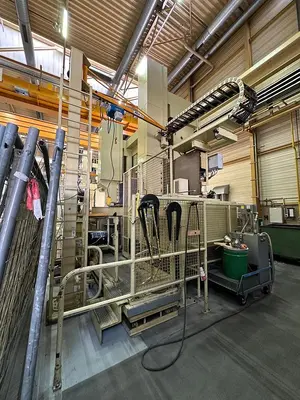

Operator Lifting Platform
Chip Conveyor
Coolant Unit
Tool Changer
Tool probe RENISHAW
Vertical Support (right)
Horizontal travel Support 2,300 mm

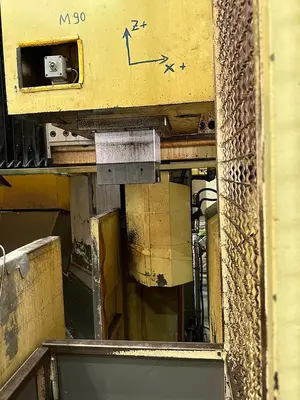

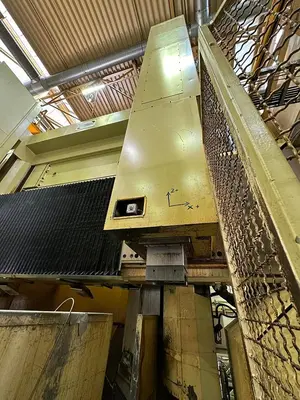

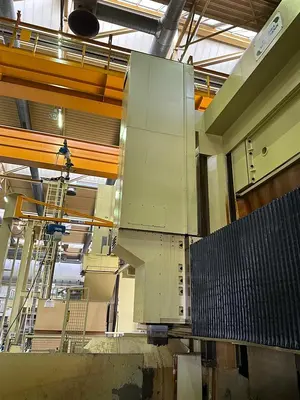

Vertical travel of the RAM 1,800 mm
Cross-section of the RAM 240 x 240 mm
Tool Changer
Vertical Support (left)
Horizontal travel Support 2,300 mm
Vertical travel of the RAM 1,800 mm
Tool changer
Live Spindle Vertical Support:
Motor Power 22,5 kW
Max. Torque 900 Nm
Specs
Manufacturer: Dorries Scharmann
Model: Contumat 3 MC: VC 4200/360
Year: 2015
Condition: Refurbished
Stock Number: 5654230
Table diameter: 3,500 mm
Swing: 4,000 mm
Turning height: 3,000 mm
Table capacity: 80 Ton
Table turn speed: 90 rpm
Crossrail travel: 1,900 mm (in 100 mm steps)
Y axis table travel: 1,800 mm
Live spindle motor: 22.5 kW
Live spindle torque: 900 Nm
Ram size: 240 x 240 mm
Main drive: 105 kW
Machine height above floor level: 7,250 mm
Machine weight: 132 Ton
