| Swing | 22" | 558.8 mm |
| Centers | 80" | 2,032 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,200 RPM | 1,200 RPM |

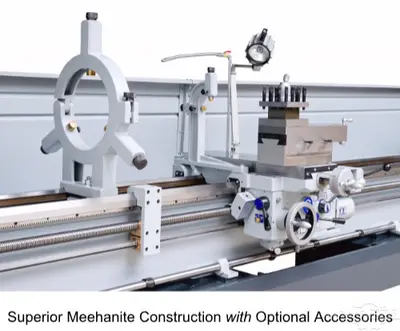

22” X 80” Engine Lathe with 15 HP Spindle Motor, 12 - Spindle Speed Gear Range for High Torque, D1-11 Camlock Spindle, 4-⅛” Spindle Bore, Longitudinal Rapid Traverse Positioning, Efficient 2 - Speed Quill Advance and One Piece Casting BaseGENERAL SPECIFICATIONS Swing Over Bed: 22”Distance Between Centers: 80”Center Height: 11”Swing Over Cross Slide: 14-⅛” Swing Thru Gap: 29-⅜”Length of Gap in Front of Faceplate: 6-½”Bed Width: 16-⅛”Spindle Motor: 12 HPSpindle Speeds: 12 (15 - 1200 RPM)Spindle Bore: 4-⅛”Spindle Nose: D1-11 CamlockSpindle Taper in Nose: MT-8Spindle Taper Reduction Sleeve Provided: MT-5Spindle Max Weight Capacity (Chuck Only): 660 LbsSpindle Max Weight (Chuck & Tailstock): 1,650 LbsSpindle Max Weight (Chuck, Steady Rest & Tailstock): 3,300 LbsCross Slide Travel: 14.96”Cross Slide Width: 7-3/32”Cross Slide Lead Screw Pitch: .200” / RevCross Slide Resolution Per Division: 0.001”Carriage Lead Screw Diameter: 1-½”Tailstock Quill Diameter: 2-5/16”Quill Stroke: MT-5Thread Cutting Range (60” Pitches): 2 - 112 TPIThread Cutting Range (50 - Diametral Pitches): 4 - 112 D.P.INCLUDES: 15 HP Spindle Motor, 12 - Spindle Speed Gear Range for High Torque, D1-11 Camlock Spindle, 4-⅛” Spindle Bore, Longitudinal Rapid Traverse Positioning, Efficient 2 - Speed Quill Advance and One Piece Casting Base
