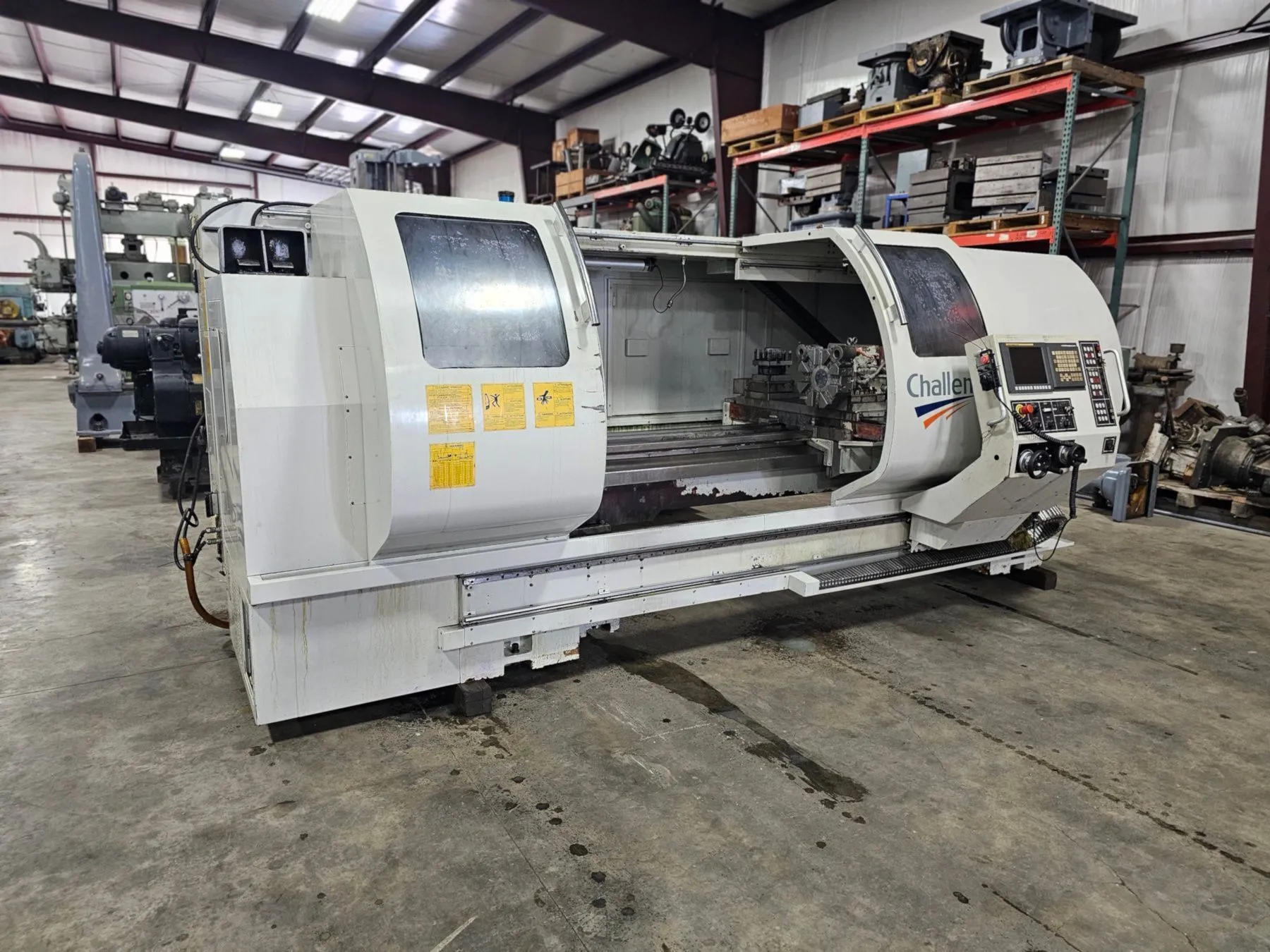

USED 2010 MICROCUT CHALLENGER BNC-2200X

22"X80" Mircocut Challenger CNC Flat Bed Lathe BNC 2200X

Control......................................Fanuc OiTD 10.4 LCD

Swing Over Ways..............................21.65"
Swing Over Cross Slide.......................12.2"
Swing In Gap.................................31.1
Cross Slide Travel Z Axis....................83"
Cross Travel X Axis..........................11.81
Center Distance..............................80"
Spindle Speeds...............................80 To 2,400 Rpm's
Spindle Hole.................................4.1"
Bar Capacity.................................3.58"
Spindle Nose.................................A1-11
Chuck Size Hydraulic.........................12" 3-Jaw
Cutting Feed Rate............................0.001 To 0.500 IPM
Rapid Traverse Z Axis........................0.590 IPM
Rapid Traverse X Axis........................0.590 IPM
Tail Stock Quill Taper.......................#5 Morse
Tail Stock Quill Stroke......................5.91"
Tail Stock Quill Diameter....................3.94"
Main Motor Continuous.......................20/30 Hp.
Floor Space.................................R-L 168" X F-B 87.6"
Machine Height..............................80.71"
Weight......................................10,800 Lbs.
Manual Steady Rest..........................5.91" To 11.81"
Manual Steady Rest..........................0.790" To 7.87"
Hydraulic Tail Stock Quill..................Yes
Front Turret Standard LS-160 Vertical.......8 Stations
Turret Tooling For V 8 Stations.............1-1/4" X 1-1/4"
Rear Turret E4-160 Horizontal...............4 Stations
Boring Holder...............................3
Facing Tool Holder..........................2
Chip Conveyor...............................Yes
Coolant System..............................Yes
Hardened & Ground Ways......................Yes

Note:
Machine can be seen under power with proper notice.
