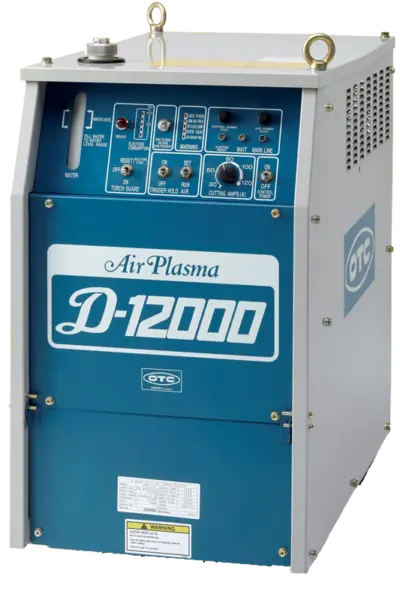

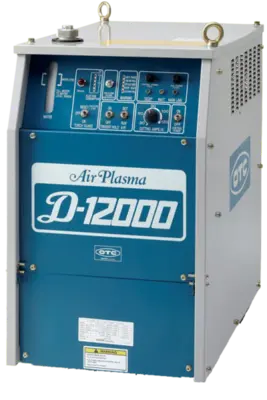

NEW OTC DAIHEN D-12000

Capable of clean cutting nearly 2-inch carbon steel and aluminum alloys, the D-12000 is a safe and economical alternative to Oxy-fuel cutting. It offers more unique, user-friendly features than any machine in its class.

OVERVIEW:
• Maximum cut up to 2-1/2 inch
• Water-cooled – 100% duty cycle
• Built-in water circulator extends torch and consumable life
• Faster, safer and more economical than oxy-fuel on 1″ carbon steel
• Superior gouging capabilities
• I/O receptacle for automated cutting
• Built-in torch guard function (alarm indicates replacement time of tip and electrode)
• Wide operation area (Up to 100 ft. torch option)
• Advanced safety protection circuits
• Fully variable output
• Cruise control
• Pulsed pilot arc start reduces electrode wear
• Diagnostic indications for troubleshooting
• Wheels provided for greater maneuverability
• Long consumable life. The D-12000’s built-in water circulator provides efficient cooling of the torch head and circulates water directly inside the electrode for extended consumable life. Compressed air is used for cutting and cooling the torch, thereby eliminating the need for expensive gases.
• Production cuts up to 2-inch thick material (including aluminum).

Number of phases 3
Rated frequency 50/60 Hz
Rated input voltage 230/460V
Input voltage range 230/460V ±10%
Rated input power 28.3kW
Rated output current 120A
Rated output current range 30 - 120A
Rated duty cycle 100%
Dimensions (W x D x H) 17.8" x 30.7" x 32.4" (453mm x 780mm x 823mm)
Mass 384 lbs. (174 kg)
