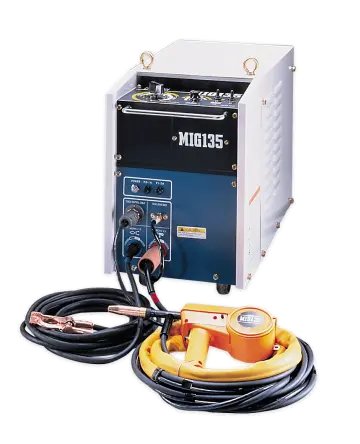

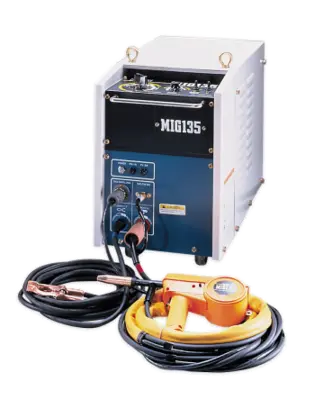

NEW OTC DAIHEN MIG-135

The MIG 135 is the ideal solution for small welding jobs and repairs. This has been a long-time favorite seller with sign shops, auto repair centers and general construction workers. The MIG 135 utilizes a special weld spool gun, also provided by OTC DAIHEN.

OVERVIEW:
• The MIG 135 comes with five separate welding modes:
- MAG welding of mild steel
- MIG welding of aluminum
- MIG welding of stainless steel
- MIG welding of galvanized steel
- Arc spot welding
• Ideal for thin sheet metal welding. By utilizing small wire diameters of .025″ and .030″, the MIG 135 is capable of high-speed welding for extremely thin materials, thereby eliminating slow, more tedious TIG processes.
• Integrated wire spool and torch. Since the wire spool is incorporated in the torch, welding is possible up to 25 feet from the power source (60 feet with option).
• Small diameter wires of .025″ and .030″ provide support for thin material.
• Lightweight spool-gun weighs only 2.5 lbs.
• Quick change wire spools.

Number of phases 1
Rated frequency 50/60Hz
Rated input voltage Single Phase 230/460/575V
Rated output current 135A
Rated duty cycle 20%
