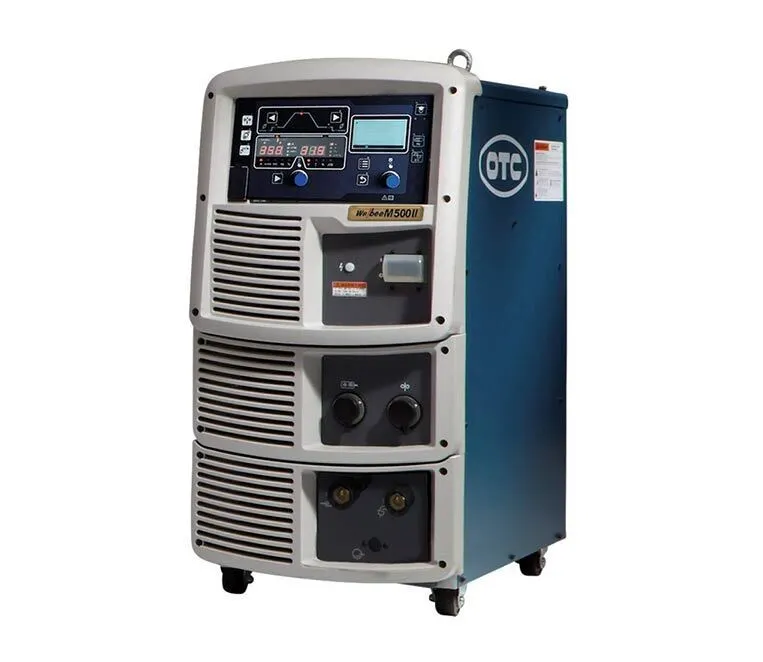

NEW OTC DAIHEN WELBEE II M500

Our 500A inverter-based weld power source is the standard welding supply for high-quality welding in any situation. This Welbee II M500 multipurpose unit is well suited for general welding applications requiring significant improvement in arc stability in the range of low to high electric currents, while delivering a beautiful weld bead with a uniform bead end and less voltage fluctuation, even during high-speed welding.

OVERVIEW:
• Optimum welding current control depending on intended use (Standard Mode – High-Speed Mode – Extension Cable Mode)
• Incredible arc stability from low to high current range
• Digital Turbo Start and End Pulse function provides excellent arc starts

Number of phases 3
Rated frequency 50/60Hz
Rated input voltage 460V
Input voltage range 460V ±10%
Rated input power 25.2kVA / 22.9kW
Rated input current 31.7A
Rated load voltage 39.0V
Rated output current range 20A-500A
Rated output voltage range 12.0V - 39.0V
Maximum no-load voltage 81V
Rated duty cycle 100%
Number of welding conditions 100
Operating temperature range 14º F to 104º F (-10 to +40º C)
Operating humidity range up to 50% at 104º F (40º C) up to 90% at 68º F (20º C)
Storage temperature range -4º F to +131º F (-20º C to +55º C)
Storage humidity range Up to 50% at 104º F (40º C) Up to 90% at 68º F (20º C)
Dimensions (W x D x H) 15.6 x 28.0 x 31.9 in. (395 x 710 x 810mm)
Mass 170 lbs (77kg)
