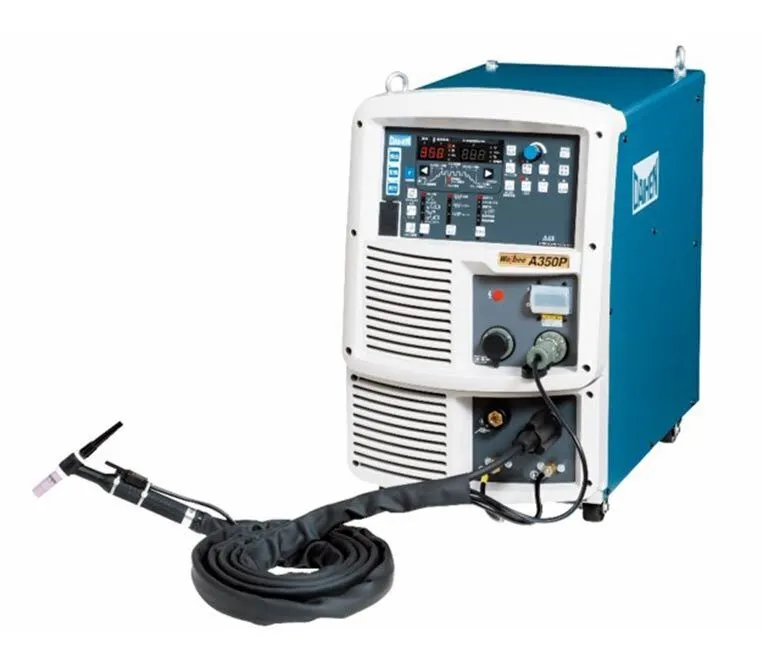

NEW OTC DAIHEN WELBEE A350P

The WELBEE WB-A350P is the ultimate TIG welding machine for both thin to thick plate welding applications. It includes variable AC frequency control that provides precise arc concentration, as well as controllable input heat.

OVERVIEW:
• Built around a dual-inverter architecture that enables support of our exclusive GTAW process: AC+DC Hybrid welding. An ideal welding mode for aluminum, it combines the cleaning action of electrode-positive welding, with the deep penetration and focus into the base metal of electrode-negative welding…all while maintaining the shape of the tungsten electrode.
• Automation ready with Fieldbus interfaces (EtherNet/IP and PROFIBUS), supporting simple conversion from manual welding to semi-automated and fully-automated applications.
• Easy operation via a user-friendly interface that revolves around a single knob to adjust weld process parameters.
• Large LED displays to notify both settings and weld parameters.
• Silent Pulse Function reduces arc noise, improving the work environment.
• Improved welding support for thin plate aluminum via High AC Frequency.
• New waveform control allows for very stable output current.
• Improved instant arc start ratio.
• 100 job memory for semi-automatic and retrofit use.

Input Voltage 460VAC +/- 10% / 3-phase
Rated frequency 50/60Hz
Rated Input Power (AC TIG) 12.9kVA (11.9kW)
Rated Input Current (AC TIG) 16.2A
Rated Load Voltage (AC/DC TIG) 24V
Rated Output Current Range (AC TIG) 5A~350A
Rated Input Power (DC TIG) 12.5kVA (11.0kW)
Rated Input Current (DC TIG) 16.3A
Rated Output Current Range (DC TIG) 2A~350A
Rated Duty Cycle 40% @ 350A / 60% @ 300A / 100% @ 270A
