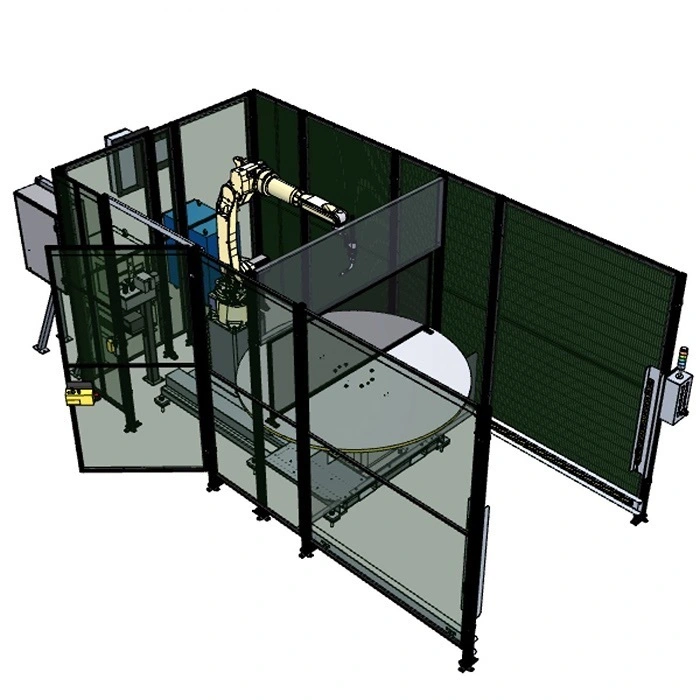

NEW OTC DAIHEN SERVO-ARC 720B

With a smaller base and floor-mounted safety fencing, the SERVO-ARC 720B (basic) provides cost savings. The servo-controlled turntable positioning cell is the unitized base option designed for medium- and large-sized parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B. The robot, turntable and guarding are all mounted to a common base along with the robot controller and welding power supply, making the unit easy to reposition within your facility.

OVERVIEW:
• Best suited for production runs of medium- and large-sized parts
• 72” servo-driven indexing table
• Smaller base and floor-mounted safety fencing
• 1 arc welding robot
• Robot manipulator in either standard or long-reach arm
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Standard forklift pockets
• Rack and pinion design
• Find additional options in the Resources tab

Index Speed (180°) – 4.2 seconds
Work capacity – 250kg/side
Weight – approx. 3200kg
Width: 2187mm (86.1”)
Height: 2200mm (86.6”)
Depth: 4564mm (179.7”)
