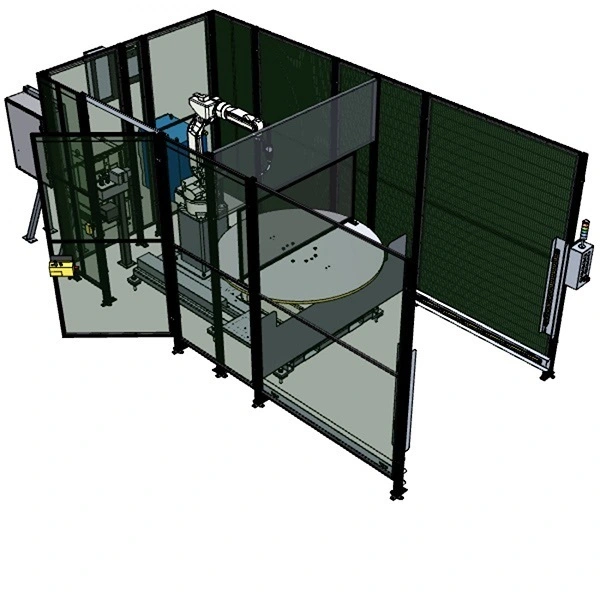

NEW OTC DAIHEN SERVO-ARC 600B

The SERVO-ARC 600B (basic) provides cost savings with a smaller base and floor mounted safety fencing. The SERVO-ARC 600 is designed for small and medium-size parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B.

OVERVIEW:
• Best suited for production runs of small- to medium-sized parts
• 60” servo-driven indexing table
• 1 arc welding robot
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Standard forklift pockets
• Rack and pinion design
• Find additional options in the Resources tab

Index speed (180°) – 4.2 Seconds
Work capacity – 250kg/side
Weight – approx. 2000kg
Width: 2263mm (89.1”)
Height: 2200mm (86.6”)
Depth: 5406mm (212.8”)
