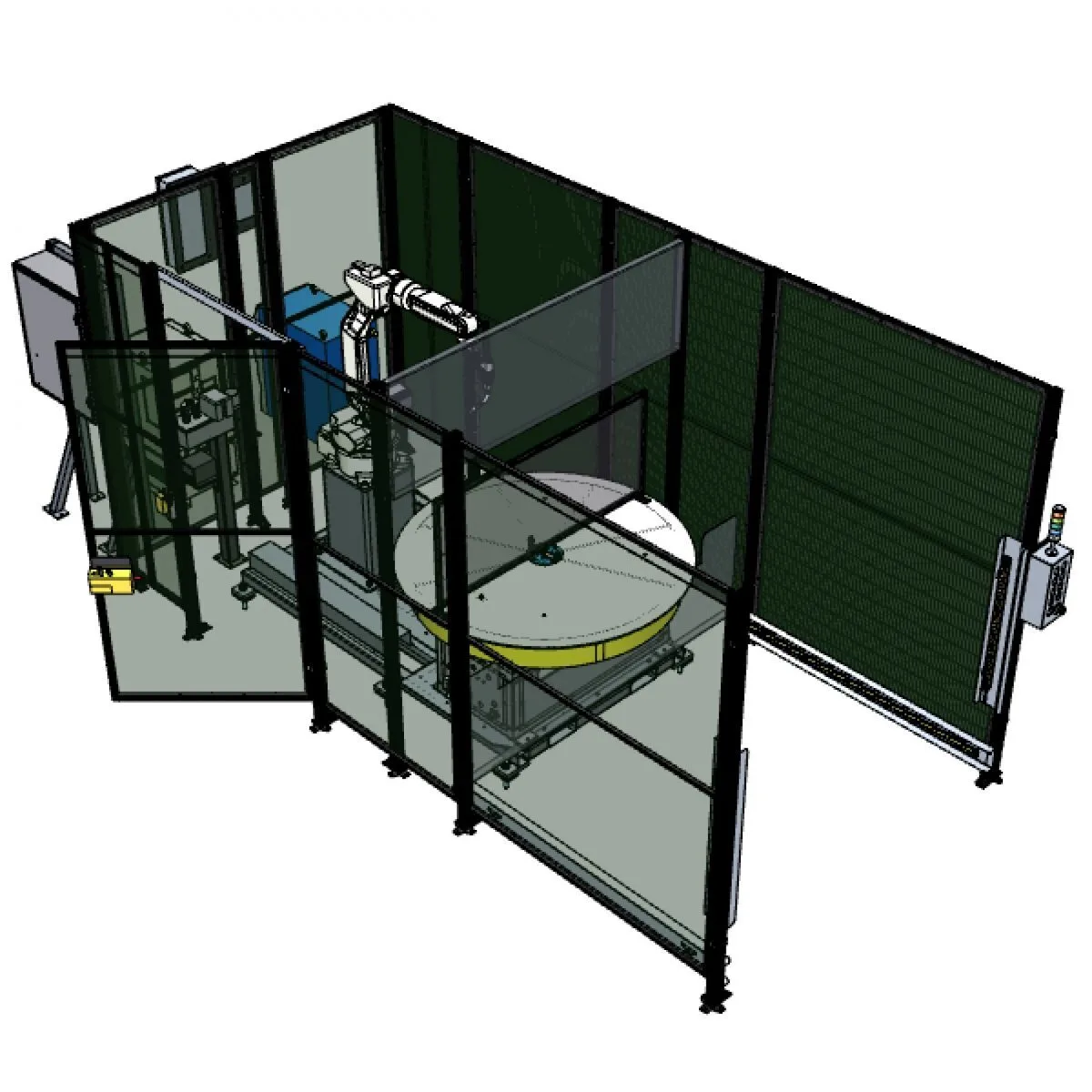

NEW OTC DAIHEN PT-ARC 600B

The PT-ARC 600B (basic) provides a smaller base and floor-mounted safety fencing. This pneumatic turntable cell is designed for small- and medium-sized parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B. Ideal for small to medium-sized parts.

OVERVIEW:
• Best suited for production runs of small- to medium-sized parts
• 60” pneumatic indexing table
• Floor-mounted safety fencing with arc flash curtains
• 1 arc welding robot
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Standard forklift pockets
• Rack and pinion design
• Find additional options in the Resources tab

Index Speed (180°) – 4.2 seconds
Work Capacity – 250kg/side
Weight – Approx. 2000kg
Width: 2263mm (89.1”)
Height: 2200mm (86.6”)
Depth: 5406mm (212.8”)
