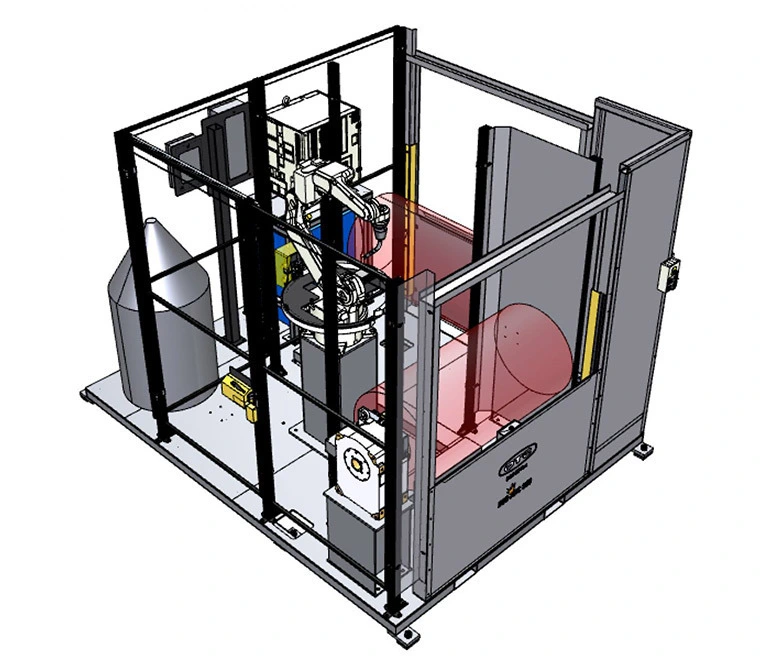

NEW OTC DAIHEN ECO-ARC 290

The OTC DAIHEN ECO-ARC 290 compact production robotic welding cell is a dual servo-controlled, headstock parts positioning cell designed for small- to medium-sized parts. The ECO-ARC 290 includes one arc-welding robot and two servo-controlled headstocks (station 1 and station 2), all on a single base that is easy to move. At approximately 2,500 kg in weight, its footprint is small compared to most other advanced robotic welding cells.

OVERVIEW
• Ideal for small- to medium-sized parts, such as automotive parts
• One arc-welding robot (standard reach)
• FD 21 robotic controller
• Robot manipulator
• Teach pendant 8 meter
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Two 250kg headstock positioners for uninterrupted production robot welding
• Full perimeter safety guarding including OSHA-mandated arc-flash protection and safety interlocked access
• Welding gas bottle mount with regulator/flow meter included
• Unitized base with fork pockets for easy pickup and positioning around fabrication shop.

Part length up to 48” and swing diameter up to 24”
Small footprint (7.7’W x 10.5’D)
Weight: Approx. 2500 kg
Maximum part diameter: 609 mm (24”)
Load centerline height: 962 mm (37.9”)
