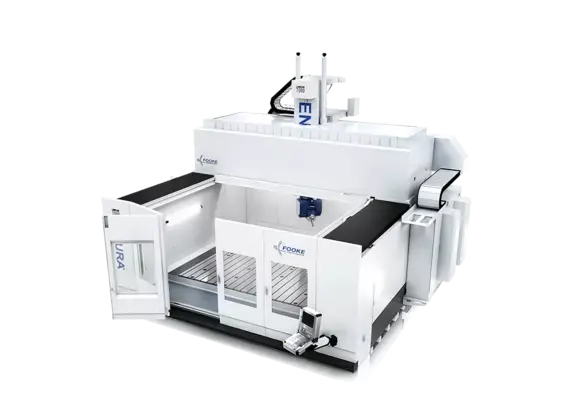

NEW FOOKE ENDURA 7000LINEAR

The ENDURA® 7000LINEAR is an overhead tool milling machine, specially designed for the heavy-duty rough machining of solid and high-strength materials. It has a dimensionally stable and compact design. This not only means a large processing volume with a relatively small footprint, but also that the machine does not need to be placed on foundations.

This compact tool milling machine ENDURA® 7000LINEAR was specially developed for the tool and mould construction, for a highly productive roughing, semi-finishing and finishing application of the customary high-strength material

Due to its high-dynamic features, the machine is particularly suitable for the high-efficiency machining in the field of 2,5 D, for processing ruled geometries, cutting contours, pockets, surfaces, drill holes, threads and spindle operations. In the field of 3D, the ENDURA® 7000LINEAR offers highest dynamics in its class, both in 3-axes as in 5-axes machining, from roughing to high precision processing with best surface results and an excellent dimensional accuracy.

During the machine’s new development, our top priority was the well-known, FOOKE-typical aspect of “excellent quality of motion control, coupled with highest accuracy of the "Tool Center Point”.

The use of linear motors in specially designed machine structural elements enables the machine to be optimally controlled, minimises contouring errors and offers the highest line speeds. This gives rise to excellent motion dynamics, especially with inconstant geometric pathways.

The robust and weight-optimised design coupled with the use of vibration-damping casting materials in suitable structural components means that the vibrational excitations caused by the milling process and the directional-change-induced movements are vastly reduced/dampened.

ADVANTAGES AT A GLANCE.
• For high-performance heavy-duty machining of high-strength materials
• Large machining area, small footprint, foundationless installation
• Thermosymmetrical machine concept
• High structural rigidity, highest dynamics and outstanding accuracies
• Material range: steel, cast iron and aluminum
• Direct drives in all axes (linear and torque motors)
• Travels up to 6,000 x 4,500 x 1,500 mm
• Range of materials: steel, cast iron and aluminum

Traverse paths
X-axis: 3,000 / 4,500 / 6,000 mm
Y-axis: 3,500 / 4,500 mm
Z-axis: 1,500 mm

Continuously variable feed rates
X-axis: 5 - 65,000 mm/min
Y-axis: 5 - 65,000 mm/min
Z-axis: 5 - 65,000 mm/min

Acceleration up to 3 m/sec²

Rapid traverse
X-axis: 65 m/min
Y-axis: 65 m/min
Z-axis: 65 m/min

Position accuracy
X-axis: 0.015 mm
Y-axis: 0.015 mm
Z-axis: 0.015 mm

Position scatter
X-axis: 0.010 mm
Y-axis: 0.010 mm
Z-axis: 0.010 mm
