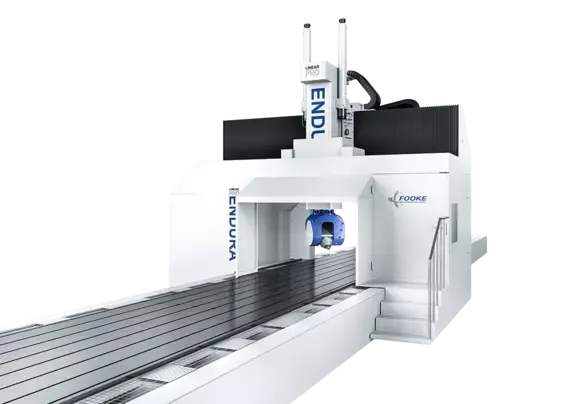

NEW FOOKE ENDURA PRO LINEAR

The ENDURA® PRO LINEAR is a 5-axis gantry – Longbed milling machine, especially designed for high-performance cutting of aluminum and composites profile structure elements. Its monoblock machine bed construction ensures a uniform load distribution. Long traverse paths in X, Y and Z and the application of a highly rigid fork milling head, enable an efficient 5-axes processing of large volume, spatially curved and twisted workpieces, e.g. stringer and other structural components from the aviation industry. The highly rigid construction of the structural and feed drives components results in highest dynamics as well as excellent accuracy of positioning and repeatability in the entire machining area.
The milling process of this 5-axis long bed profile milling machine is absolutely stable. Consequently, highest cutting rates up to 11.0 l/min are achieved with minimal wear of the milling cutting edge.

ADVANTAGES AT A GLANCE.
• Specialist for stringer and profil machining
• Highly dynamic 5-axis machining of long workpieces
• Material removal rates up to 11.0 l/min
• Flexible workpiece clamping systems
• Ergonomic loading
• Two-station component machining for process-parallel loading
• Monobloc machine bed design, modularly expandable
• Encapsulated machining area by bullet-proof lamellas
• Travels up to 60,000 x 3,500 x 1,500 mm
• Range of materials: aluminum, composites (CFRP/GFRP)

Traverse paths
X-axis: 6,000 - 60,000 mm
Y-axis: 1,600 / 2,400 / 3,100 mm
Z-axis: 1,100 / 1,500 mm

Feed rates
X-axis: 5 - 60,000 mm/min
Y-axis: 5 - 65,000 mm/min
Z-axis: 5 - 65,000 mm/min

Acceleration up to 3.5 m/sec²

Position accuracy
X-axis: 0.030 mm
Y-axis: 0.020 mm
Z-axis: 0.015 mm

Position scatter
X-axis: 0.015 mm
Y-axis: 0.010 mm
Z-axis: 0.010 mm

Long-bed milling machine in gantry construction
Inherently rigid machine table construction in monoblock design
Certified impact resistant vertical blinds
Optimal chip conveyance solution
Wear free, high dynamic linear motors and direct measuring systems in Y- and A-axis
Wear free, high dynamic torque motors and direct measuring systems in C- and A-axis
