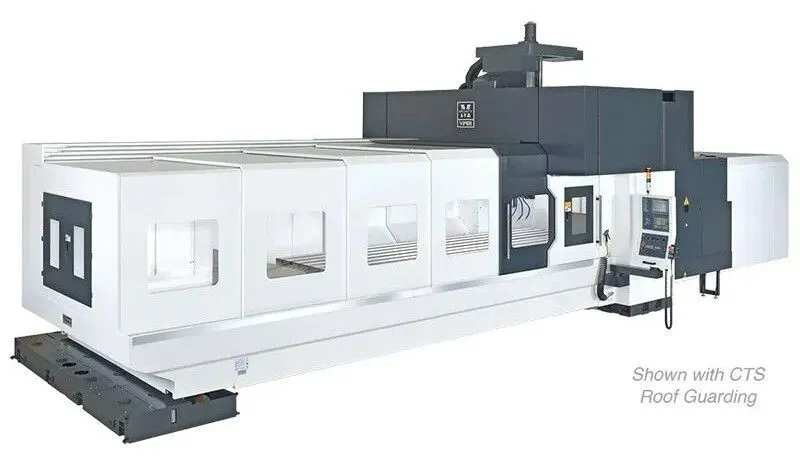

PMC • Bridge mill features a larger Y-axis for an expanded work table surface. Heavy-duty linear guideways on XY axes and box ways on Z-axis. Flexible machining with manual milling heads: 30° angular, 90° angular, universal, and extension.
| X axis | 82.7 in | 2,100.6 mm |
| Y axis | 47.2 in | 1,198.9 mm |
| Z axis | 31.5 in | 800.1 mm |
| Nose Taper | 50 | 50 |
| Speed Gear (rpm) | 6000 | 6000 |
| Drive Motor** (hp) | 35 | 35 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
