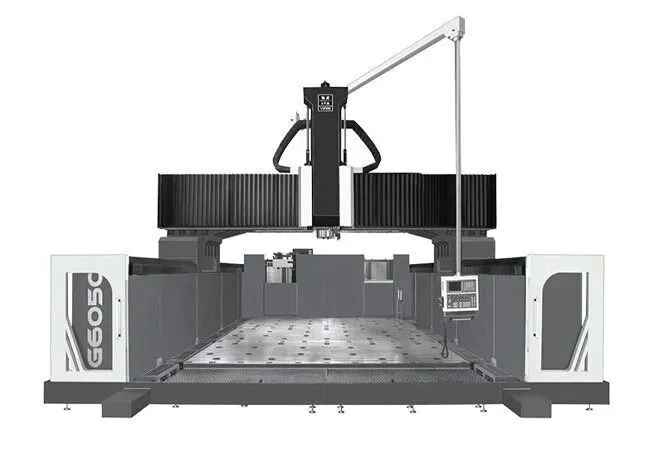

NEW MIGHTY VIPER PRH xx20

PRH • Gantry type bridge machine with a big work envelope for machining large parts. X travel length is up to 1417″ (36M). And the Y travel is up to 196- (SM) wide. Transmission system uses rack and pinion linear motion with a German gear reducer. Twin servo motors are synchronized to eliminate backlash for optimal precision.

X-Travel 236~1417
Y-Travel 98~196
Z-Travel 39 / 47 / 59
Nose Taper #50
Speed (Gear) rpm 4200 / 5000*
Speed (DDS) rpm 8000 / 10,000
Drive Motor** (hp) 25 / 30 / 35*
Rapid Feed (ipm) 472~945
CNC Control Fanuc / Siemens*
