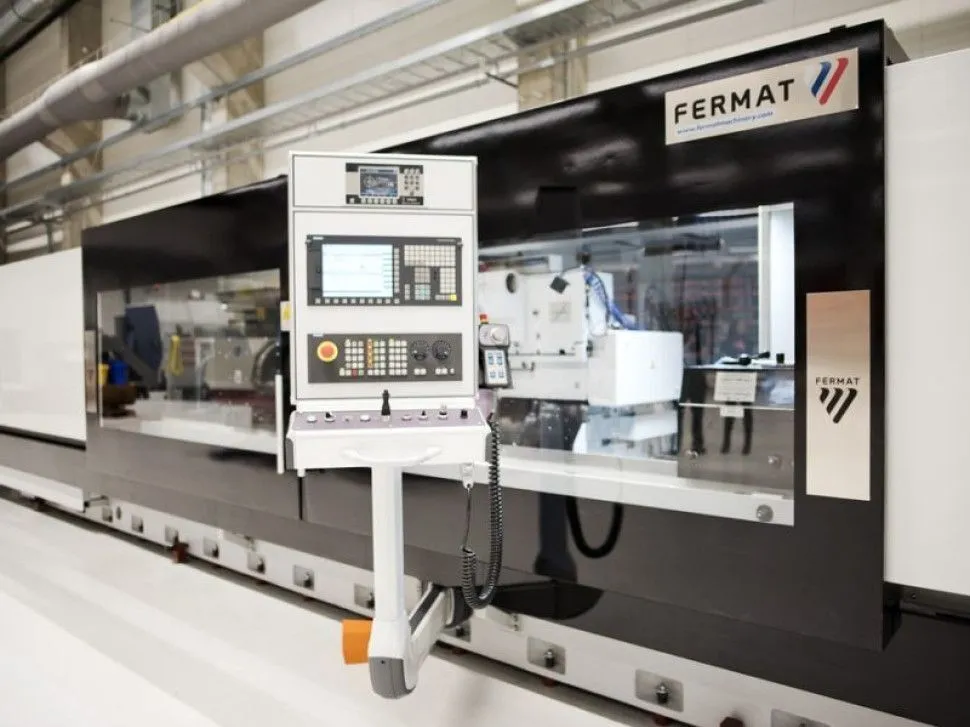

NEW LUCAS BUC E 63/85 CNC

BUC E CNC is fully CNC controlled grinding machine designed for traverse and plunge-cut grinding of cylindrical and conical external surfaces, or with internal grinding attachment for grinding of cylindrical and conical internal surfaces. Grinding of surfaces can be performed by the side of grinding wheel or its circumferential surface with using work head swivel.

Wheel head infeed and table travel are provided by means of servomotors and ball screws. Grinding machine series BUC E can be used particularly in large series production for grinding of workpieces up to 6 614 lbs | 3 000 kg.

BUC E is made with high accuracy and enable grinding of single diameters in the tolerance of IT 4 and higher. Standard version of the machine is equipped with control system Siemens 828D sl, alternatively Siemens 840D sl or B&R.
