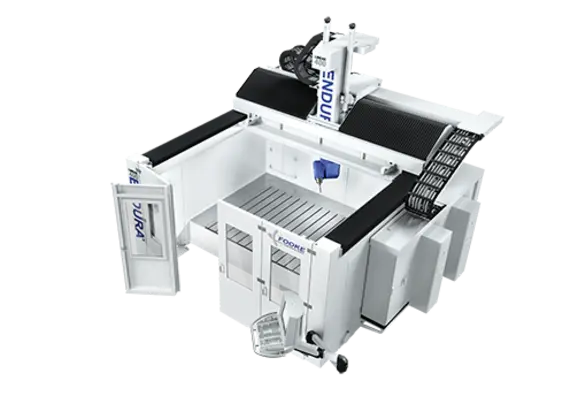

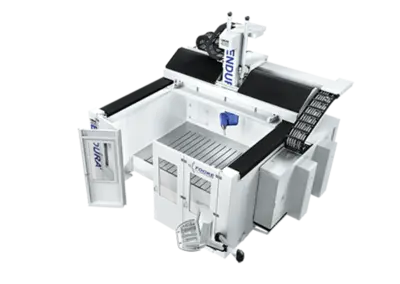

NEW FOOKE ENDURA 400 Linear

Highly efficient for plastics processing
Large machining area, small installation surface, can be set up without foundations
Direct drive motors in all axes (linear and torque motors)
High structural rigidity, highest dynamics and best accuracies
Easy transport and short commissioning due to compact machine design
Consistently high precision due to temperature stability of the machine structure
Travels up to 2,500 x 3,000 x 1,200 mm
Range of materials: plastics, CFRP/GFRP, modeling block material, aluminum

Traverse paths

X-axis: 2,700 mm

Y-axis: 2,000 / 3,000 mm

Z-axis: 1,200 mm

Feed rates

X-axis: 5 - 90,000 mm/min

Y-axis: 5 - 90,000 mm/min

Z-axis: 5 - 80,000 mm/min

Acceleration up to 5 m/sec²

Position accuracy

X-axis: 0.020 mm

Y-axis: 0.015 mm

Z-axis: 0.015 mm

Position scatter

X-axis: 0.015 mm

Y-axis: 0.010 mm

Z-axis: 0.010 mm
