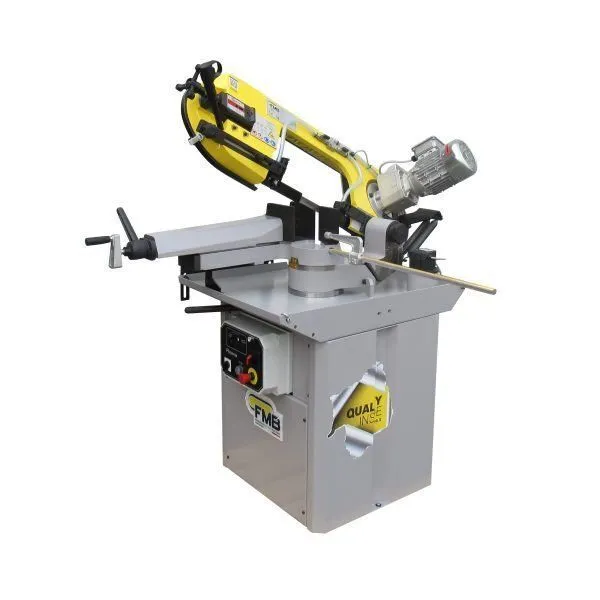

NEW FMB PHOENIX

FMB Miter Bandsaws are ideal for a wide range of iron, steel fab, and machine shops. Available in manual pull-down or gravity-fed for walk-away cutting, the FMB Phoenix is a popular choice for fabricators who require flexibility in their cutting solution. The Phoenix offers cutting accuracy and squareness and a pivoting saw head.

Available in two models
FMB Phoenix Pull Down Model – “Original Pull Down Saw”: FMB Pull Down enables the fastest sawing and operation on tubes, profiles, and small solids.

FMB Phoenix G Model with Hydraulic Cutting Control – The “G” allows using either the Pull Down for fast sawing and operation on light jobs with the added convenience of hydraulic Downfeed for heavy tubes, profiles, and solids. The “G” lets you “walk-away” while the machine completes the cut and shuts off.

Technical Data:
Cutting Capacity O Degree 45 Degree 60 Degree
Round 8-5/8" 6" 3-1/2"
Rectangle A 5" x 10" 8" x 5-1/4" 3-1/2" x 3-1/2"
Rectangle B 8-1/2" x 9" - -
Square 8-1/2" x 8-1/2" 6" x 6" 3-1/2" x 3-1/2"
Blade Size 8' x 1" x .035"
Blade Speed 115 and 230 FPM (110v/1PH is 1 Speed - 230 FPM)
Saw Motor Power 1 HP
Voltages Available 220v/3PH, 440v/3PH ,110v/1PH
Foot Print 32" x 53"
Weight 670 lbs.
