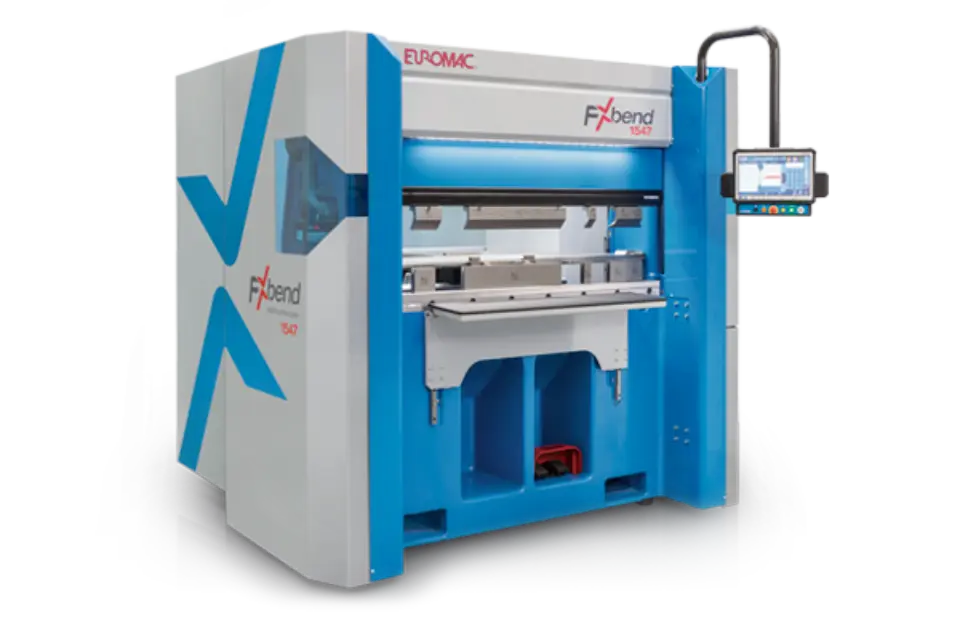

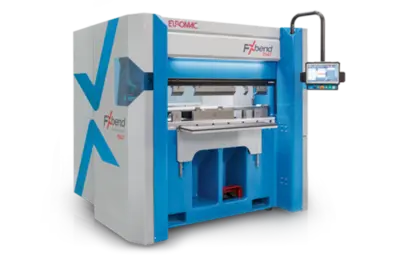

NEW EUROMAC FX BEND 1547

A machine designed to overcome your goals. Thus it was born the FX Bend 1547; Electric Press Brake with direct drive pull no deflection ballscrew. A solution for your performance needs that combines the features of the FX Bend range with greater power and an increased bending length.

Innovation, reliability and productivity. If you had to define FX Bend through three words would be certainly these.

Bending length 1530 mm.
Maximum bending force 470 kN.
Y axis stroke (in) 10″ (250 mm)
Y axis speed (mm/sec) 200
Inclination (mm) (Y1-Y2) + – 10
Opening (mm) (table to ram) 335 (435)
Connections wireless/USB port YES/2
Motor power (kW) 2×5,2 Connected load (kWa) 6
Approx. weight (lbs) 8600
