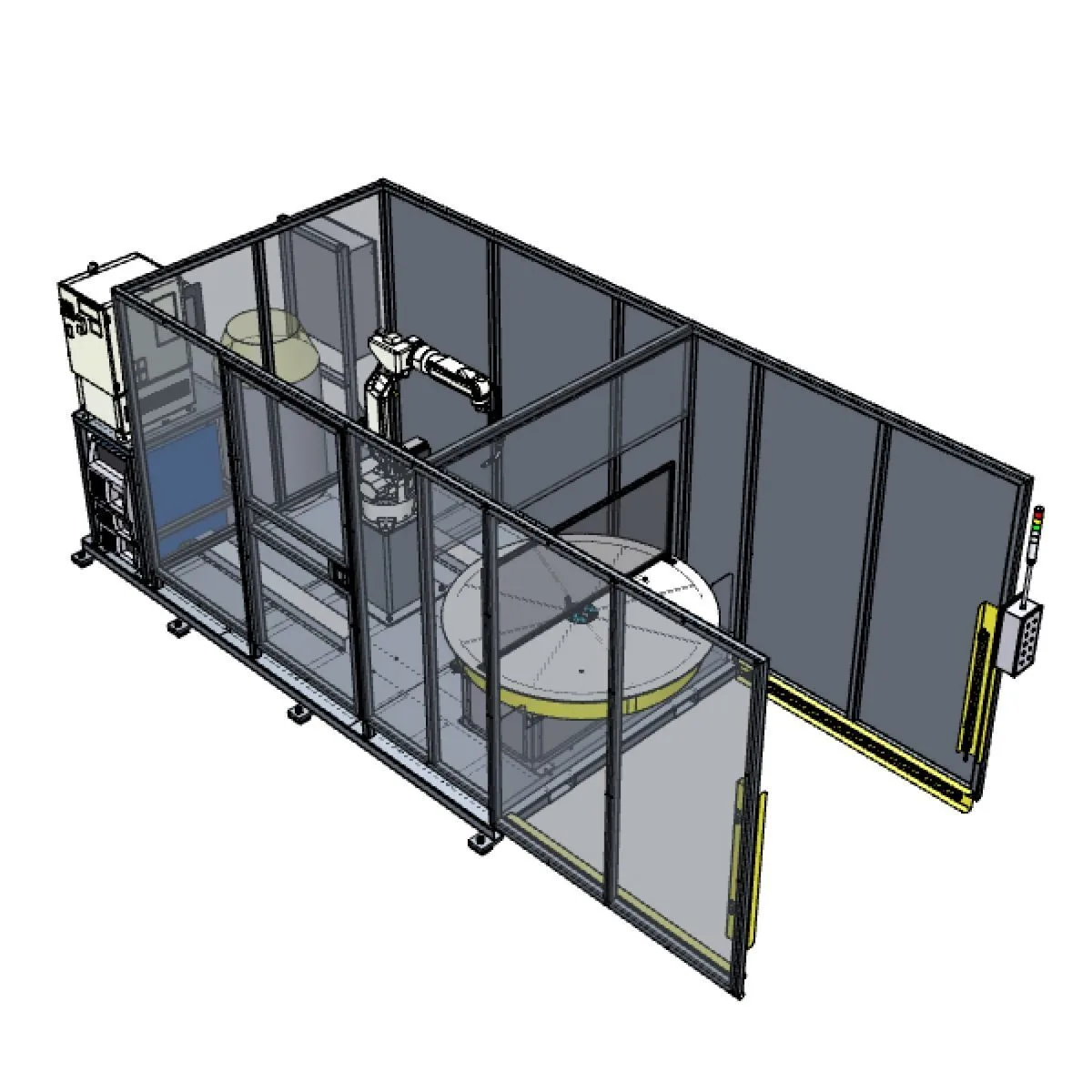

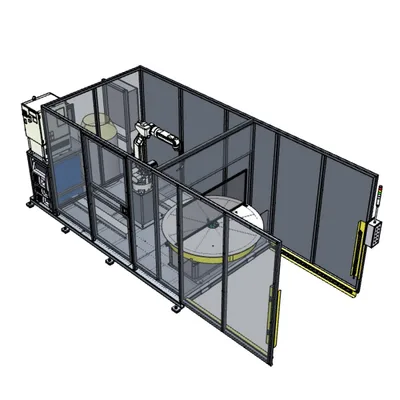

NEW OTC DAIHEN PT-ARC 600

The PT-ARC 600 pneumatic turntable cell is designed for small- and medium-sized parts with minimal operator movement required. The operator can prepare the work on side A while the robot is welding on side B. Ideal for small- to medium-sized parts.

OVERVIEW:
• Best suited for production runs of small to medium-sized parts
• 60” pneumatic turntable cell
• 1 arc welding robot
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Standard forklift pockets
• Rack and pinion design
• Find additional options in the Resources tab

Index Speed (180°) – 4.2 seconds
Work Capacity – 250kg/side
Weight – Approx. 3500kg
Width: 2200mm (86.6”)
Height: 2235mm (88.0”)
Depth: 5511mm (217.0”)
