NEW OTC DAIHEN DT-ARC 500

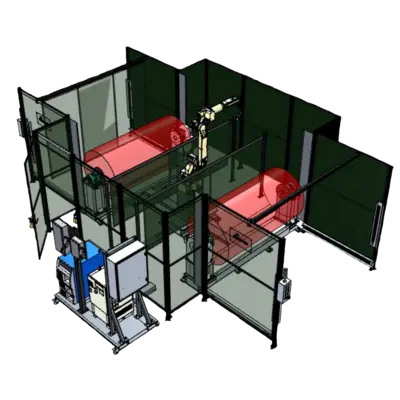

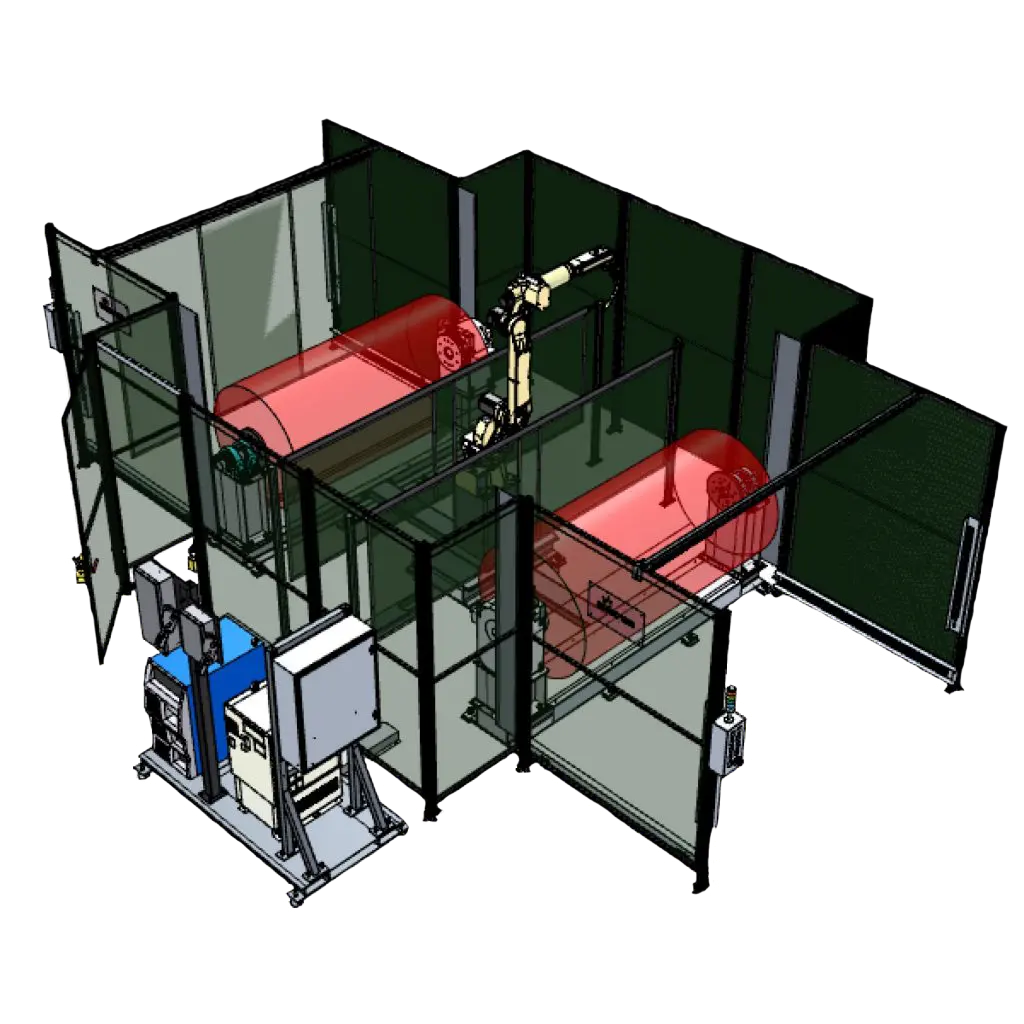

The DT-ARC 500 is a dual, servo-controlled head and tailstock-positioning cell, designed for medium and large parts. The two-station configuration allows the operator to prepare work on station one while the robot welds on station two. It is a flexible design to allow for 180-degree and 120-degree station orientations. The open station load design allows for crane access with heavier payloads.

OVERVIEW:
• Ideal for medium and large parts
• Flexible design to allow for 180-degree and 120-degree station orientations
• Open station load design allows for crane access with heavier payloads
• Dual A2PB-500 headstock positioners
• 1 arc welding robot
• Robot manipulator in either standard or long-reach arm
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Manual arc flash safety curtain at individual operator stations
• Common base for HS/TS assembly
• Zone ring for station designation
• Access door on LH side
• Arc flash curtain for cross station protection
• Floor-mounted safety fencing with arc flash curtains

Work Capacity – 500kg/side
Standard HS/TS span: 2000mm
Maximum span: 3100mm
HS/TS swing diameter: 1000mm
Weight: Approx. 3000kg
Width: 5556mm (218.7”)
Height: 2200mm (86.6”)
Depth: 7055mm (277.8”)
