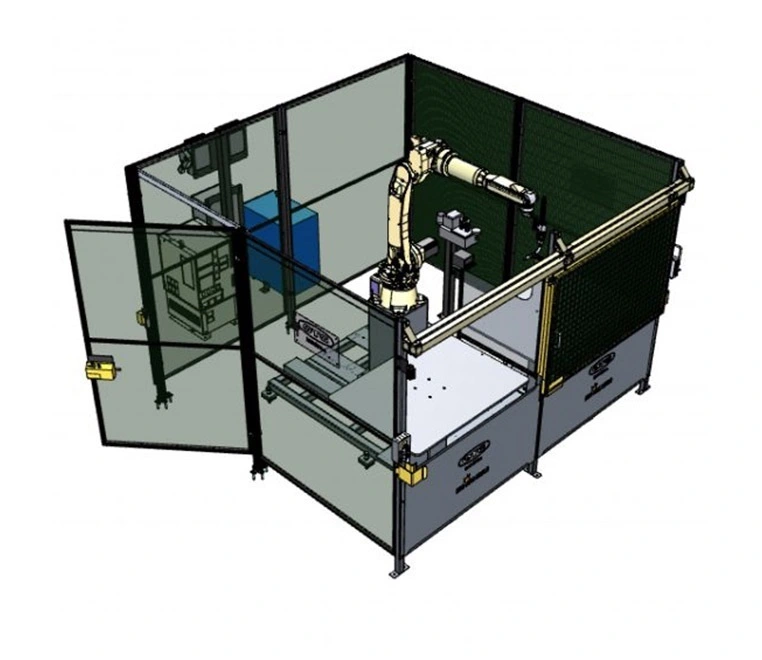

NEW OTC DAIHEN ECO-ARC 200LB

The OTC ECO-ARC 200LB (large, basic) provides a larger work envelope with a long arm robot manipulator and two larger tabletops. Like others in the 200 series, it is economically designed with stationary tables for durability and quick cycle times. The OTC ECO-ARC 200LB is best suited for production runs of medium to high volume, with little or no part positioning. A simple, compact design allows for quick teach times and part access.

OVERVIEW:
• Larger work envelope with long arm robot manipulator and two larger tabletops
• Best suited for production runs of medium to high volume, with little or no part positioning
• 2 stationary tables with long reach robot manipulator FD-V8L (S2)
• 1 arc welding robot
• Integrated Welbee II advanced welding power source with wire feeder and torch
• Advanced robot controller
• Teach pendant
• Smaller base with floor-mounted safety fencing and arc flash curtains
• Manually sliding operator load doors
• Steel tubular frame assembly
• Zone Ring for station designation
• Standard forklift pockets in base for easy movement
• Steel wall station divider
• Find options for the cell, headstock and more in the Resources tab

Tabletop Dimensions: 1220mm x 915mm
Weight: Approx. 2000kg
Width: 3294mm (129.7”)
Height: 2200mm (86.6”)
Depth: 3915mm (154.1”)
