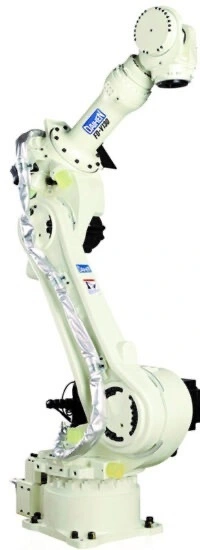

NEW OTC DAIHEN FD-V130

Our FD-V130, 6-axis robot is designed for material handling and other applications that require a larger payload and reach. Built-in application cabling, utilities and user portal simplify end-of-arm tooling integration and installation.

OVERVIEW
• Offers a wide working range with an independently articulated arm
• Improved vibration restraining control provides smooth robot movement
• Single source technology – all components are manufactured by OTC DAIHEN
• Highly versatile design supports picking, cutting, load/unload, welding, assembly, finishing and sorting applications
• Through-arm support for end-of-arm tool interfacing including, pneumatic, power, I/O (digital, analog and network) and user/application-specific utilities

Number of Axes 6
Maximum Payload Capacity 286 lbs. (130 kg)
Horizontal Reach 84" (2139 mm)
Vertical Reach 142" (3615 mm)
Positional Repeatability +/- 0.003" (+/- 0.08 mm)
Upper Arm Payload Capacity 55 lbs. (25 kg)
Mass 1635 lbs. (743 kg)
Installation Type Floor / Ceiling
