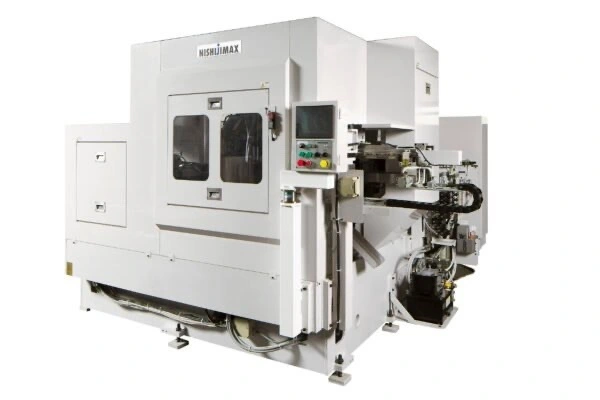

NEW NISHIJIMAX NHC-100M
Overview
Description
HIGH-SPEED CIRCULAR VERTICAL TILT CNC AUTO MITER
The Nishijimax NHC-100M is fully automatic, handing both left and right miter cuts. Material loss is greatly reduced to 2.5 mm (0.105") kerf. CNC setup with high-speed circular sawing results in the most economical cost per cut. Set the blade RPM and chip load per tooth and the cut time is maintained by the CNC, servo motors, and ball screws.
IDEAL FOR APPLICATIONS IN THE FOLLOWING INDUSTRIES:
• Agricultural and Mining Equipment
• Automotive Tier 1/2/3 suppliers
• Forging
• Heavy Truck and Trailer Manufacturers
• Machine Shops
• Medical
• Oil and Gas
• Sawing Houses/Service Shops
• Steel Service Centers
• Tube Mills and Tube Suppliers
• Weapon, Gun and Accessories Manufacturing
Specifications
Floor Space - 55.8 cu. ft.
Machine Weight - 13,228 lbs
Vertical tilt CNC miter saws any angles between 45 degrees left and right
Saw head feed via precision ball screw and 10 HP AC servo motor
21 HP saw blade drive motor with infinitely variable blade RPM 32-115
The precision spindle is driven by a powerful gear reduction gearbox
Precision blade guides
Power-driven chip brush
Powder metal brake with brake torque of 10 kgm
