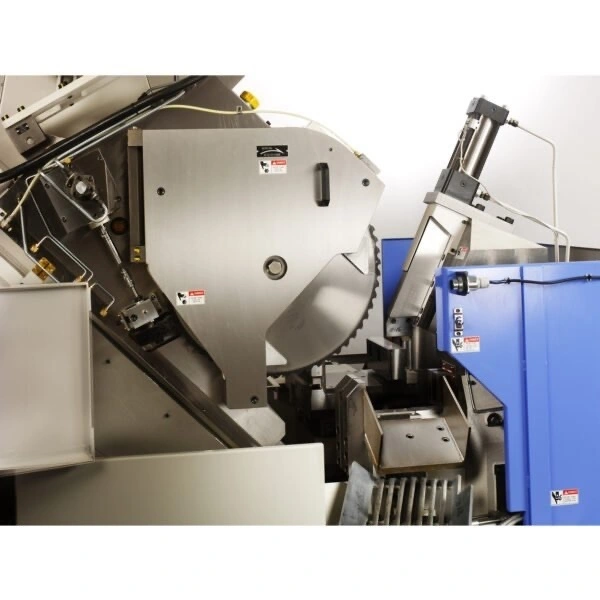

NEW NISHIJIMAX NHC-180/200

HIGH SPEED CIRCULAR SAWING MACHINES
Massive and Rigid Construction – NHC-180/200
Machine Weight 15,432 lbs

Z-CUTTING AXIS:
45 Degree Wedge Cutting Axis with Linear Rails allows blade guides fixed closer to bar and keeps chips away from the saw spindle/hub. The Ball Screw Servo Control of the Cutting Axis allows for independent Control of both the Blade RPM and the Chip Load per Tooth.

The precision Saw Blade Spindle and heavy Duty Gear Box Reduction with powder brake removes all backlash delivering outstanding life of the saw blade. The powered Chip Brush, that is centered on both sides of the cutting tip further extends the life of the saw blade, especially when cutting pipe and stainless steel.

Secure Clamping of the work piece on both side of the saw blade, insuring maximum blade life, as well as superior surface finish.

X-SIZER AXIS:
The X-Axis will index the length or bar or tube to a precise cut length. This unit is ball screw driven and servo controlled. It travels guide rails. The sizer clamp has 3 positions to insure clean movement of the bar forward to the desired cut length. The unit also has a retract motion after each cut to insure long life of the saw blade.

IDEAL FOR APPLICATIONS IN THE FOLLOWING INDUSTRIES:
• Agricultural and Mining Equipment
• Automotive Tier 1/2/3 suppliers
• Forging
• Heavy Truck and Trailer Manufacturers
• Machine Shops
• Medical
• Oil and Gas
• Sawing Houses/Service Shops
• Steel Service Centers
• Tube Mills and Tube Suppliers
• Weapon, Gun and Accessories Manufacturing
