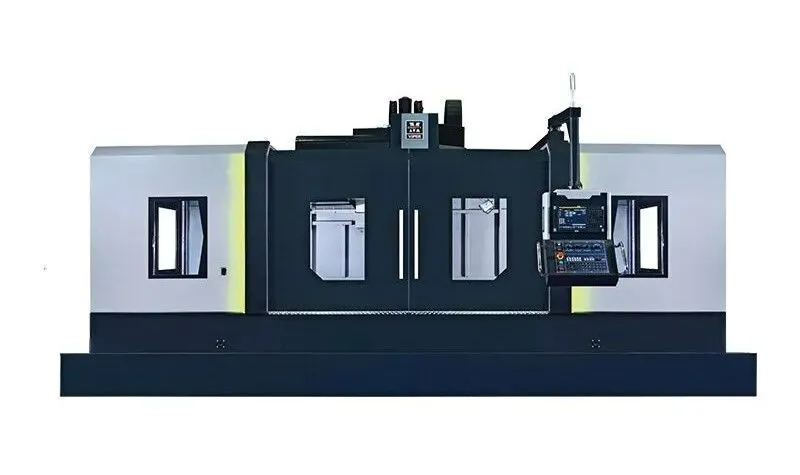

VMC-2100 Six slide ways under the Y-axis saddle provide high rigidity, and heavy loading capacity, along with superior cutting. Dual bal/screws on Y-axis generate fast traverse rates and high-speed acceleration.
| X | 83" | 2,108.2 mm |
| Y | 40" | 1,016 mm |
| Z | 42" | 1,066.8 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| Taper | #50 | #50 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
X-Travel 83 / 102 / 122 / 161
Y-Travel 40
Z-Travel 42
Nose Taper #50
Speed (Gear) rpm 8000 / 6000 / 4000
Speed DDS* (rpm) 10,000
Drive Motor** (hp) 35
CNC Control Fanuc
