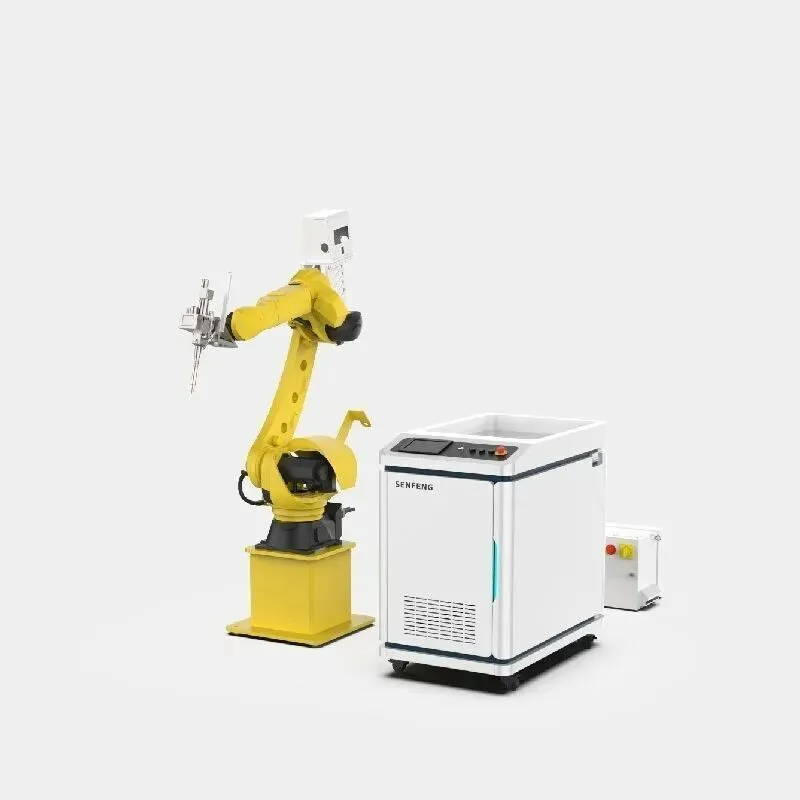

NEW SENFENG SF6000RW

The arm length of 3D robot fiber laser welding machine can reach to 5.9’*10.4′. It is the preferred model in the metal material welding and processing industry. The machine can weld all kinds of metal. Off-line programming software and weld seam tracking system can be selected according to customer requirements, greatly improving work efficiency.

Laser Power (kW) 6
Laser Wavelength (nm) 1080 (±10)
Thickness of Welding Sheet (mm) ≤7
Diameter of Filler Wire (mm) 0.8-1.6
Weight of Welding Gun (kg) ≤8
Max Load of Robot (kg) 25
Fiber Length 65.62′
Robot Armspan 72.09″
Overall Dimensions (L*W*H) 25.2″ * 39.37″ * 27.56″
