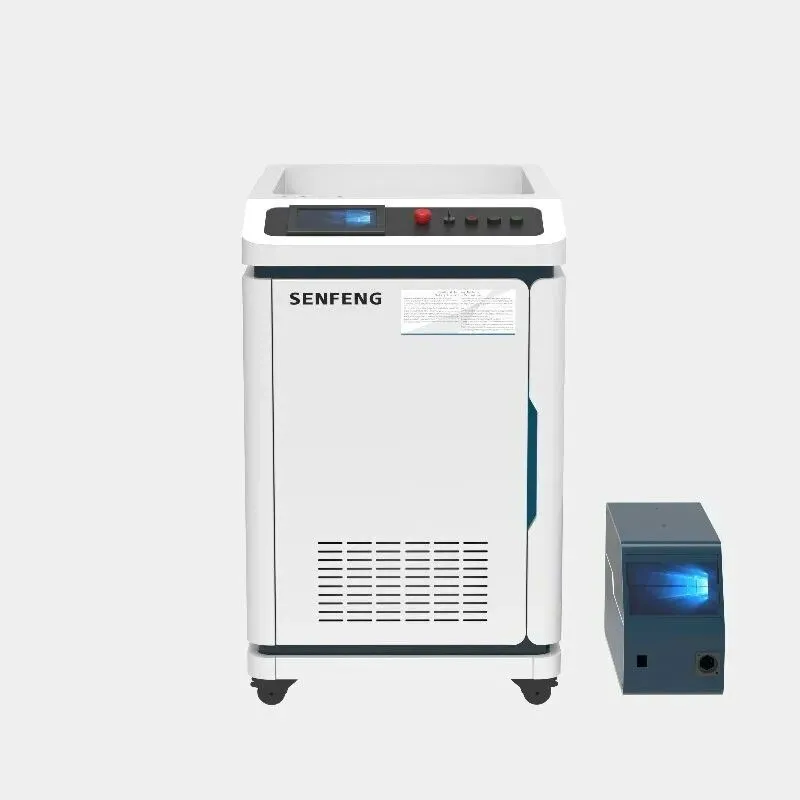

The handheld fiber laser welding machine HWM series is excellent at welding all kinds of metal sheets and tubes. This fiber laser welder requires little practice to start using and is very fast. It can save you a lot of time and money in your welding production. The HWM Series can go up to 3kw of power.
Handheld fiber laser welding machine HWM Series is used to weld metal plates and metal tubes. The product passed CE/ FDA/ ETL certifications.
Laser Power (kW) 2
Laser Wavelength (nm) 1080±10
Thickness of Welding Sheet (mm) ≤5
Diameter of Filler Wire (mm) 0.8-1.6 (standard)
Weight of Welding Gun (kg) ≤0.7
Length of Welding Gun Line 32.81′
Net Weight of Machine (kg) 220
Overall Dimensions (L*W*H) 37.56″ * 28.15″ *42.52″
Power Supply Three-phase 380V, 50Hz/60Hz (custom-made)
