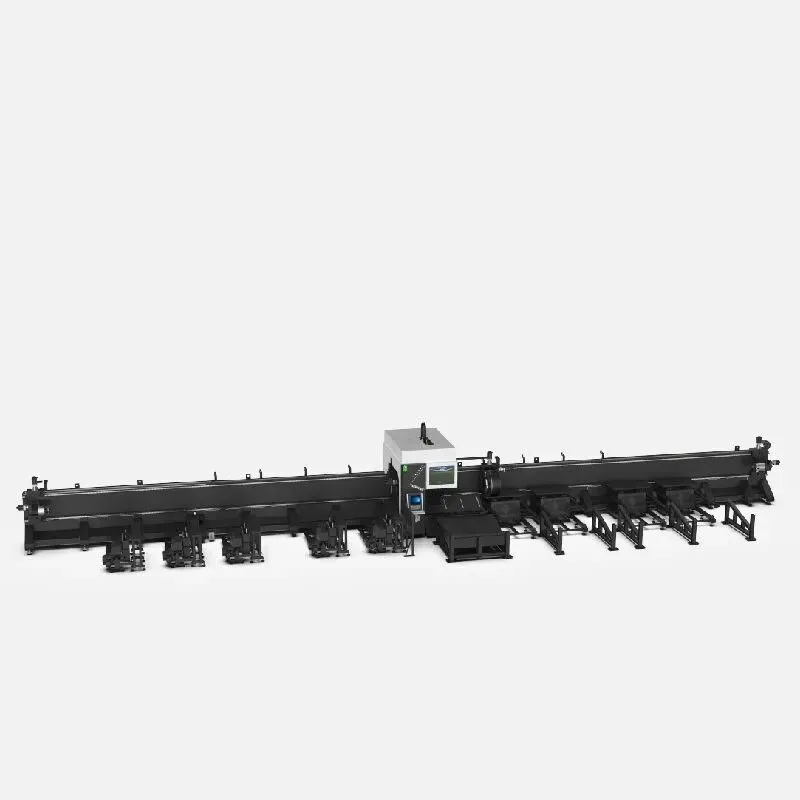

NEW SENFENG SF12050HT

12050HT born for cutting large, heavy and long tubes. We offer special side-attached machine tool and automatic loading & unloading devices. That is why this machine covers a relatively large area. So, it is recommended to heavy industries requiring large-sized equipment like engineering, heavy and construction machinery.

Laser Power 6-20kW
Max Length of Tube 472″
Scope of Tube Size Φ1.97″-19.69″
□1.97″*1.97″~19.69″*19.69″
Max Weight of Tube 2000kg
X/Y-axis Positioning Accuracy ±0.1/10000mm
X/Y-axis Repositioning Accuracy ±0.05mm
Max No-load Speed 131’/min
Max Rotating Speed of Chucks 40r/min
Overall Dimensions (L*W*H) 1141″*283″*163″
Power Supply Three-phase 380V, 50Hz/60Hz (custom-made)
