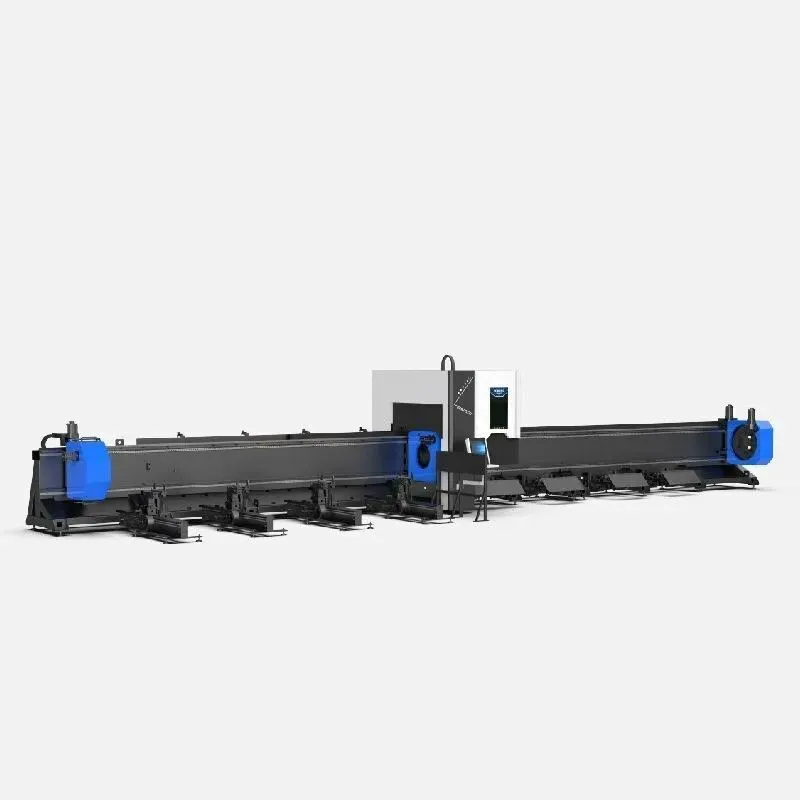

NEW SENFENG SF12050ST

Laser Power 6-20kW
Max Length of Tube 472.44″
Scope of Tube Size Φ0.79″~14.17″ □1.97″*1.97″~19.69″*19.69″
Max Weight of Tube 2000kg
X/Y-axis Positioning Accuracy ±0.1/10000mm/m
X/Y-axis Repositioning Accuracy ±0.03mm
Max No-load Speed 131’/min
Max Rotating Speed of Chucks 40r/min
Overall Dimensions 866.14″*283.46″*163.39
Power Supply Three-phase 380V, 50Hz/60Hz (custom-made)

◆Intelligent bus-based CNC system

◆Autofocus laser cutting head

◆Three high-precision chucks

◆Side-attached heavy-duty machine tool

◆Laser generator with 75μm fiber core

◆Automatic unloading device

◆2-year warranty period

◆24/7/365 technical support
