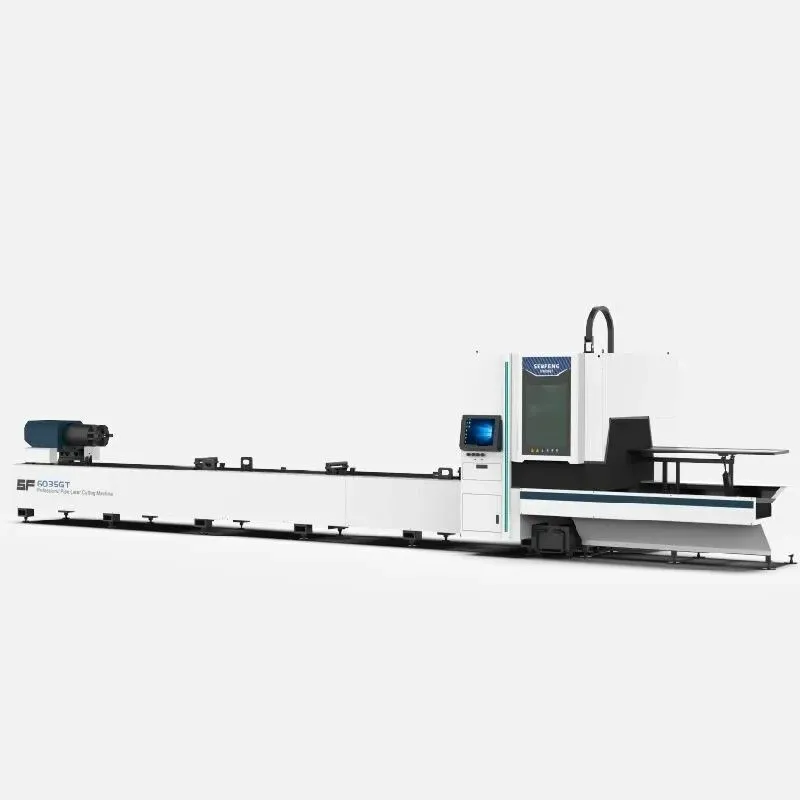

NEW SENFENG SF6035GT

Laser Power (kW) 3-6
Max Length of Tube (mm) 6000
Scope of Tube Size (mm) Φ50~360
□50*50~360*360
Max Weight of Tube (kg) 700
X/Y-axis Positioning Accuracy (mm) ±0.05
X/Y-axis Repositioning Accuracy (mm) ±0.03
Max No-load Speed (m/min) 60
Max Rotating Speed of Chucks (r/min) 60
Overall Dimensions (L*W*H, mm) 10200*2280*2530
Power Supply Three-phase 380V, 50Hz/60Hz (custom-made)

◆FSCUT intelligent bus-based CNC system

◆Automatic nesting software

◆Double pneumatic chucks

◆±45° bevel laser cutting head

◆Laser generator with 75μm fiber core

◆Automatic unloading device

◆2-year warranty period

◆24/7/365 technical support
