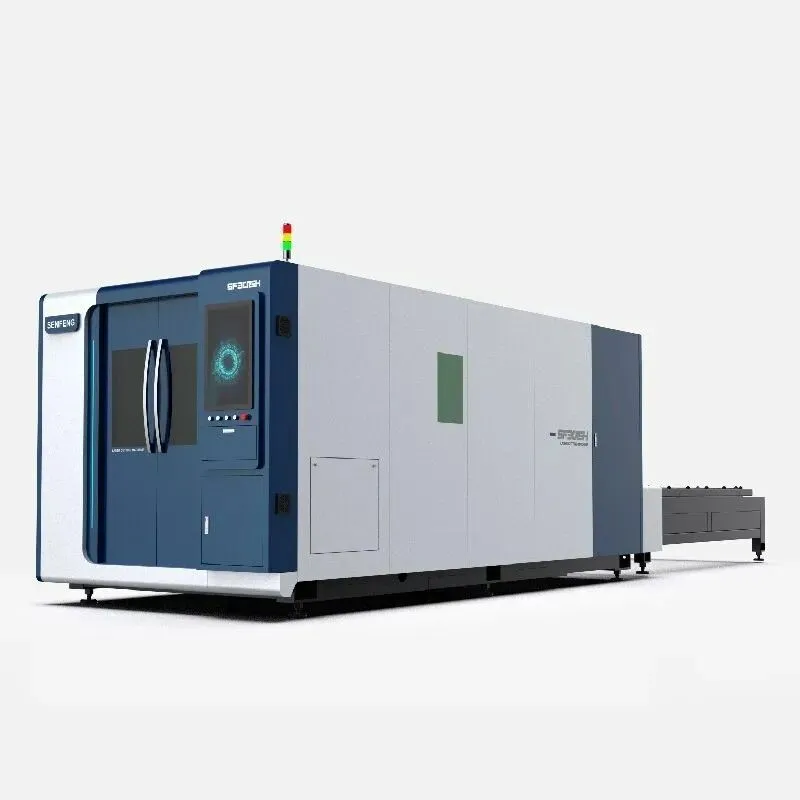

NEW SENFENG SF3015H

SF3015H fiber laser cutter is mainly designed for the power:1.5kw to 12kw, it is with full-protection cover, which can prevent laser radiation and protect worker safety, reduce environmental pollution; and it is also with auto-exchangeable platforms, which can save materials loading time, improve the processing efficiency. The exchange platform only takes 20 seconds to complete the exchange. The biggest feature of this machine is that the whole machine can fit into a 40HQ. No need frame container, which greatly saves freight costs. The sheet metal does not have to be dismantled for packing. It will save a lot of installation time.

Working Area 10′ * 5′
Laser Power 1.5-12kW
X/Y Axis positioning accuracy ±0.05mm
X/Y Axis repeated positioning accuracy ±0.02mm
Max No-load Speed 426′ /min
Max Load of Platforms 700kg
Overall Dimensions 335″ * 89″ * 86″
