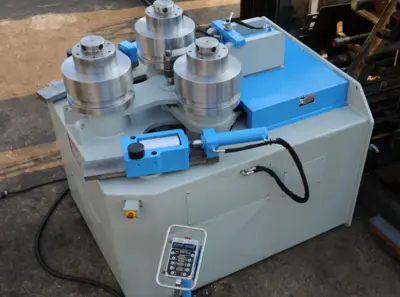

NEW WALDEMAR WDM AR

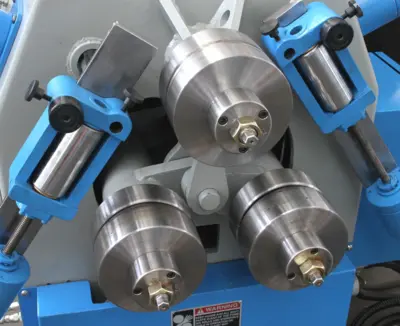

The WDM AR series guide roll system is the key to successful angle bending. WDM machines have guide roll adjustment systems that allow the user to adjust the rolls in all ways necessary to obtain good work pieces. The small/economy machines have manual adjustments via acme screws and handwheel/worm gear arrangements. Machines 4x4 and larger have 6 way power guide rolls for optimal performance. The AR series is capable of rolling angle, flat bar, square bar, tee, round bar, pipe, tubing, channel, and I-beam.

Standard Features
Unitized steel construction

Flame hardened alloy steel shafts and arbors

Total hydraulic operation

Instant start/stop/reverse

2 speed/variable speed

1 set universal dies; rolls:

Angle leg in and out​

Tee bar leg in and out

Flats on edge and on flat

Square and small rounds​​

Accurately machined and hardened dies​

3 roll drive (all machines except 4 roll)

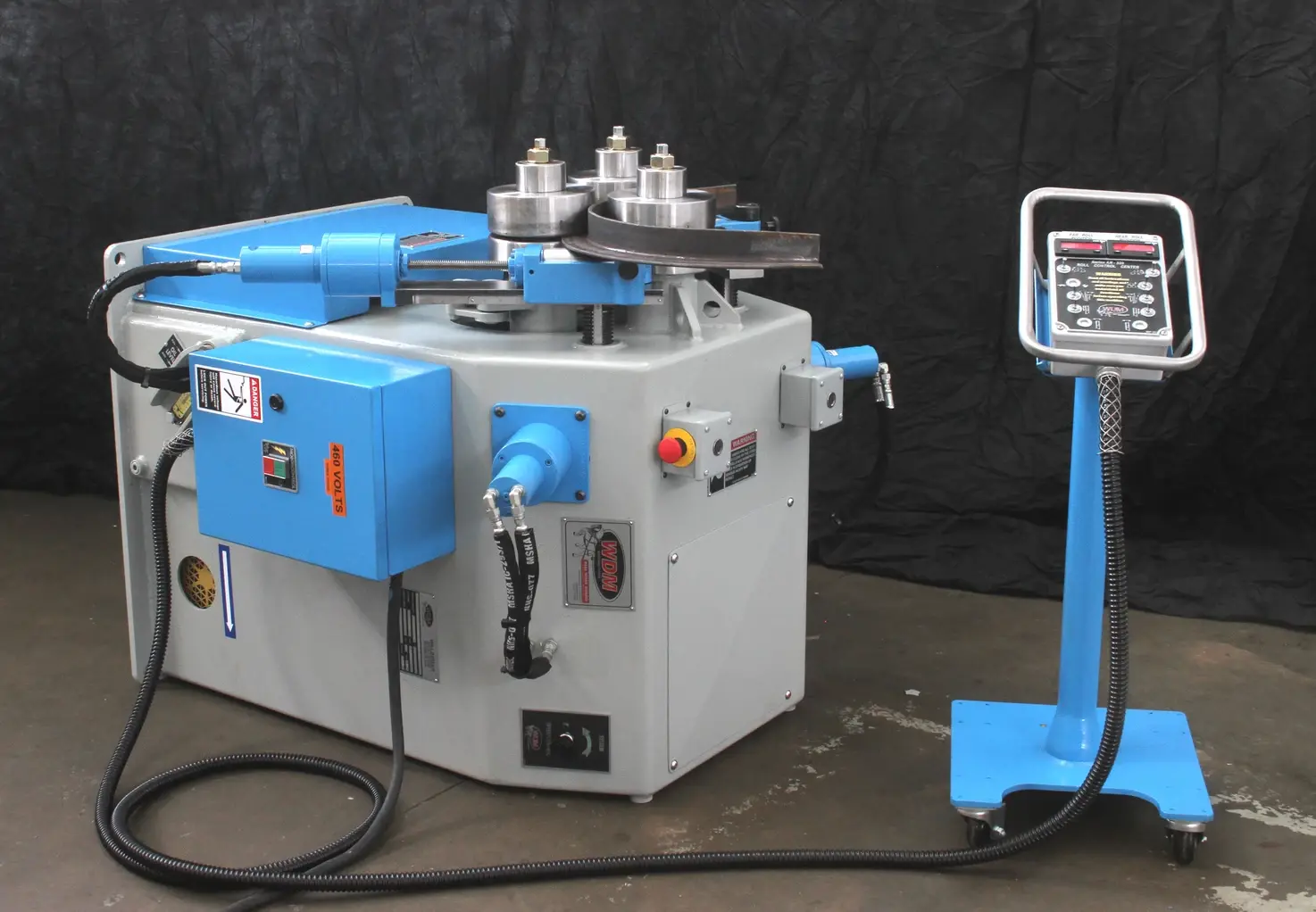

Roving pendant control

DRO to show roll position

Electrics to NFPA specifications

24VDC control circuit

Safety stop/emergency stop mushroom buttons

Overload protection

TEFC main motor

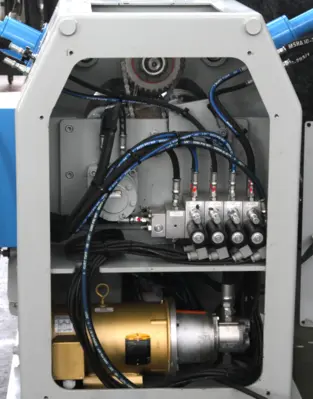

Quiet integrated hydraulic system

Painted haze grey epoxy and blue enamel

sealed spherical roller bearings on all main points

Non-lube, minimum maintenance technology throughout

Heavy gear drive with very strong efficient tooth profile, most gears cut in our own shop.

Made in USA
