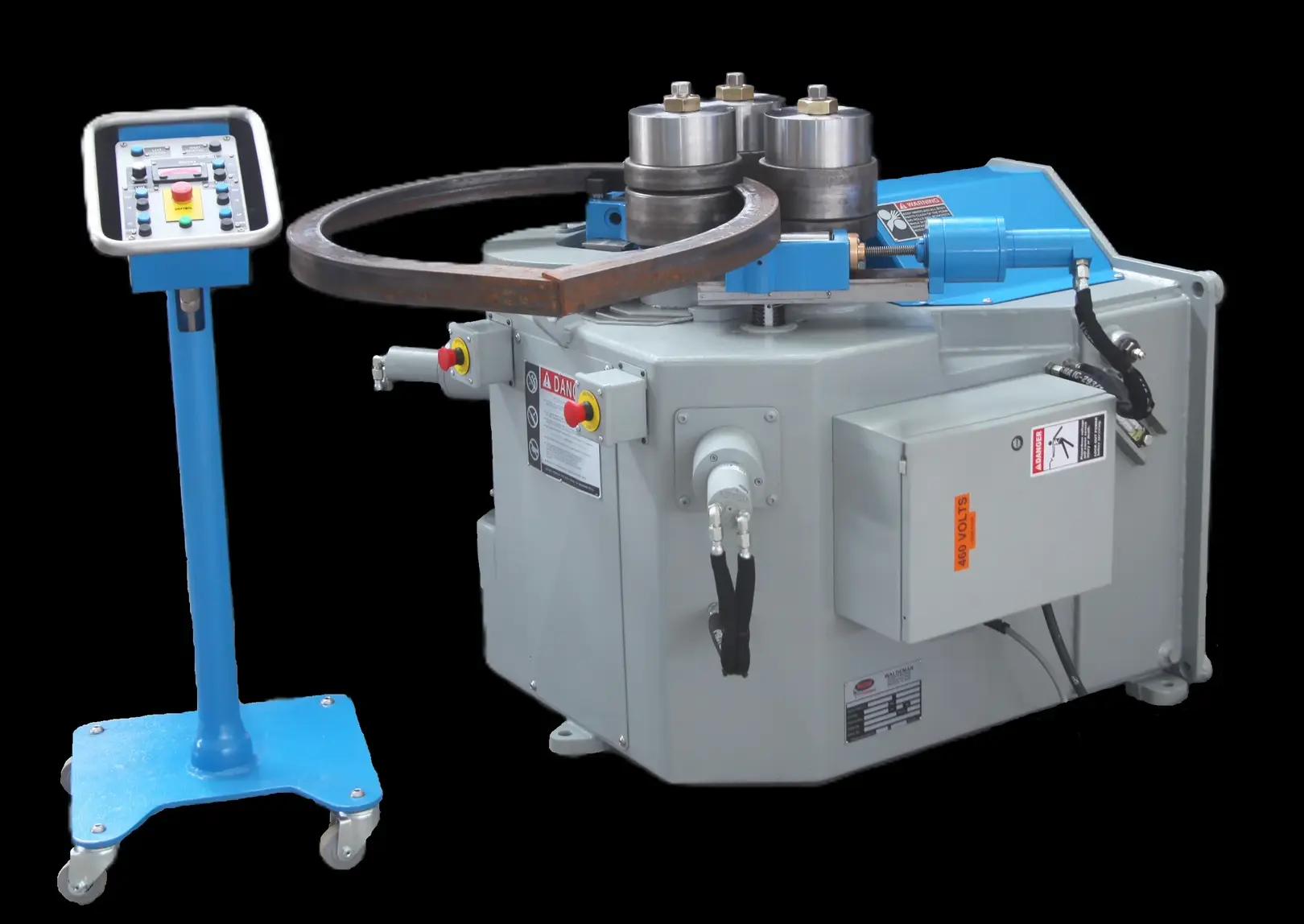

NEW WALDEMAR WDM PR

Being in the metal industry you understand the demand there is for angle, tubing, pipe, channel, I-beam and other profiles in the manufacturing industry. Whether you are making a tanker trailer or a spiral staircase handrail the ability to roll profiles is essential to your business. WDM knows the demands that are placed on you to provide your customers with consistent, quality parts and products which is why we offer the PR Series. The PR Series takes WDM’s 35 years of knowledge making durable roll bending machines and combines that with a high production mindset. What you get is a heavy duty 3-roll pinch pyramid style angle roll where the 2 bending rolls are stationary and the top roll is the only moving variable. By limiting the die variables to just one setting you drastically increase the repeatability you can achieve even if the machine is operated by several different operators. The PR Series is highly recommend for large production applications where consistency is required from piece to piece.

Standard Features
Unitized steel construction

Flame hardened steel shafts and arbors

Total hydraulic operation

Instant start/stop/reverse

Infinitely variable speed from 0-22FPM

1 set universal dies; rolls:

Angle leg in and out​

Tee bar leg in and out

Flats on edge and on flat

Square and small rounds​​

Accurately machined and hardened dies​

3 roll drive (all machines except 4 roll)

Roving pendant control

DRO to show roll position

Electrics to NFPA specifications

24VDC control circuit

Safety stop/emergency stop mushroom buttons

Overload protection

TEFC main motor

Quiet integrated hydraulic system

Painted haze grey epoxy and blue enamel

sealed spherical roller bearings on all main points

Non-lube, minimum maintenance technology throughout

Heavy gear drive with very strong efficient tooth profile, most gears cut in our own shop.

Made in USA
