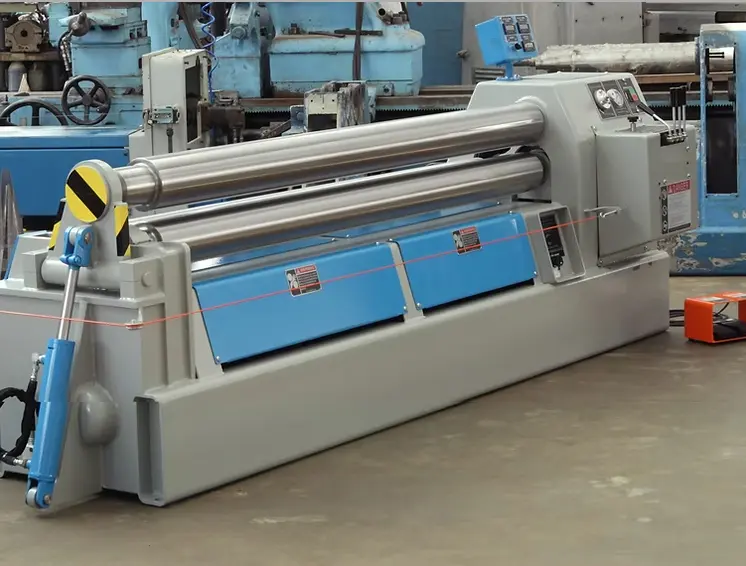

NEW WALDEMAR WDM K

The WDM K series hydraulic initial pinch plate bending machine; models K-5 to K-12 are well designed, robust machines that feature a wedge actuated pinch roll positioning system. This provides for an accurate and parallel pinch roll position. The rear bending roll is positioned with heavy duty master and slave hydraulic cylinder arrangement. The accurately machined rolls turn on sealed spherical roller bearings with extended maintenance period of five years or more, in most cases. The heavy fabricated steel main frame contains a hydraulic reservoir for a quiet integrated hydraulic system. In designing the system, much attention is given to the efficiency of components which results in a cool operation. The Beta 3.2 roving pendant control with pushbutton controls and DRO's to show position of the rolls comes standard. If however you prefer a more sophisticated machine we offer many options and enhancements in control styles and position indication. If you have a special need beyond this we are glad to accommodate it.

Standard Features
1045 steel rolls machined to T63 micro inch finish.

Crowned rolls

Total hydraulic operation

Instant start/stop/reverse

2 roll drive

3 phase 230/430 volts 60hz electrics

Electrics to NFPA-79 specifications

24VDC control circuit

Roll speed infinitely variable 0-22 FPM

Safety/Emergency stop cable on 3 sides of the machine

Overload protected

TEFC main motor

Quiet hydraulic system

Haze gray epoxy and blue enamel finish (V.O.C. compliant)

Sealed spherical roller bearings on all main points

Bending roll tilts for cone rolling

Accurately machined, compact, streamlined, and all welded steel frame

Rolls driven direct via hydraulic motor or gear speed reducers

Roving pendant control

DRO to show roll position

Horizontal starting groove in pinch roll

Hydraulically actuated drop-end

1 year warranty

Made in USA
