NEW WALDEMAR WDM 101

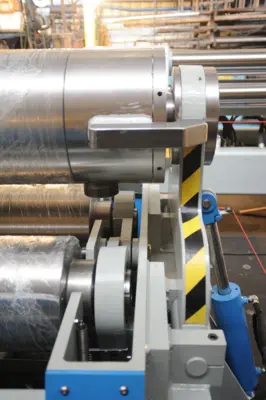

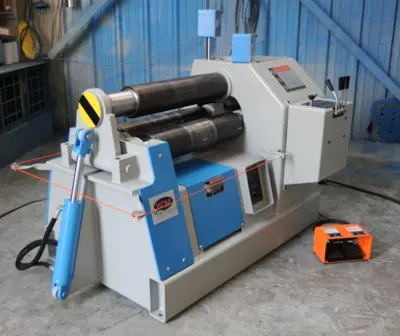

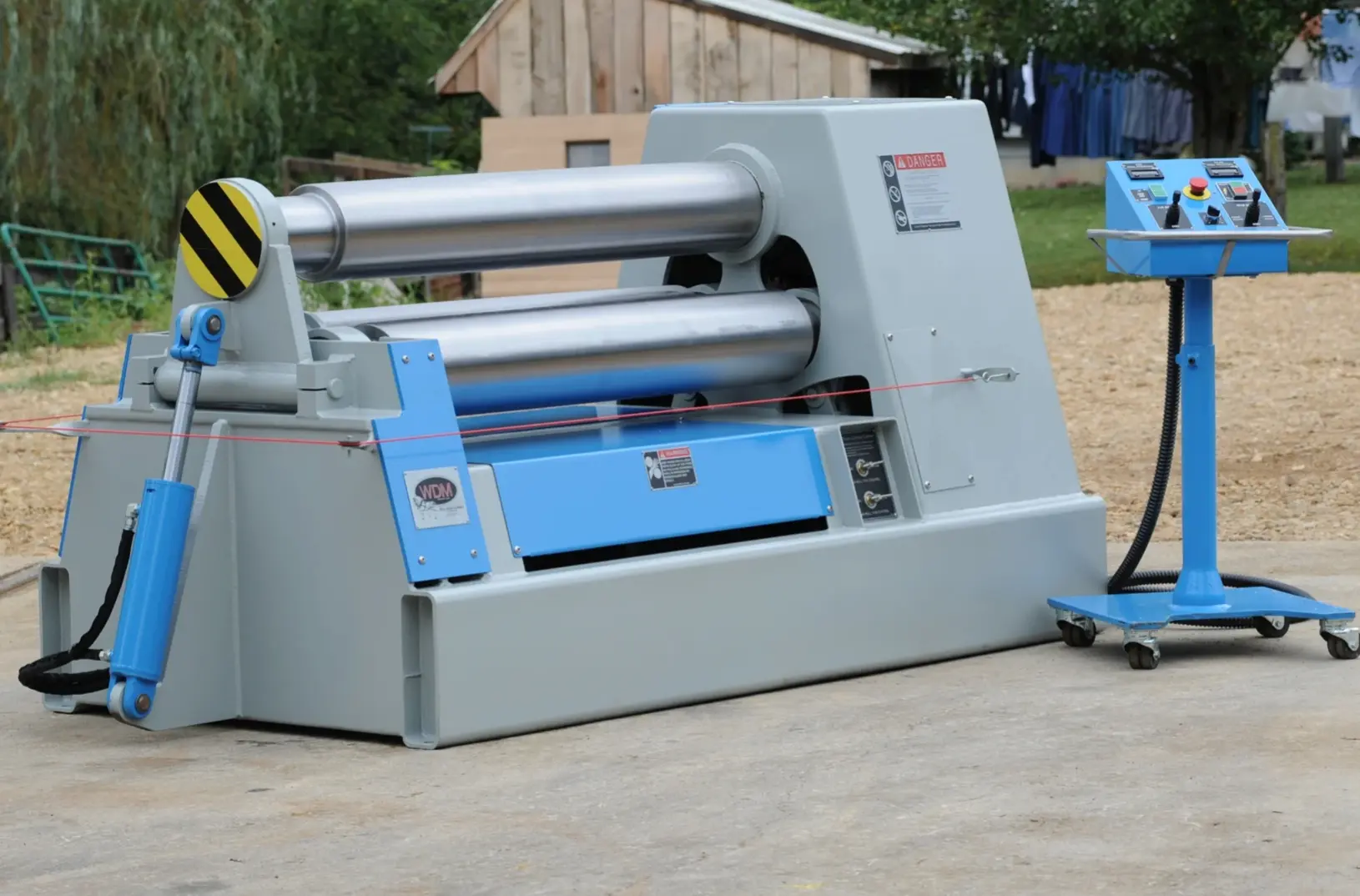

Because of the design and arrangement of the rolls the WDM 101 series pinch pyramid bending roll is a very versatile plate roll. Because of the large openings between the rolls symmetrical structural sections can be rolled without additional attachments, square and rectangle tubing, channel leg in/out, I-beam on flange, and fabricated panels. In the forming operation both the leading and trailing edges can be performed with one entry of the workpiece into the machine. This eliminates the necessity of manipulating and turning the workpiece for a double entry as is required on an initial pinch type machine.

Standard Features
1045 steel rolls machined to T63 micro inch finish

Crowned rolls

Total hydraulic operation

Instant start/stop/reverse

3 roll drive

3 phase 230/460 volts, 60HZ electrics

Electrics to NFPA-79 specifications 24VDC control circuit

Safety/Emergency stop cable on 3 sides of the machine

Overload protected

TEFC main motor

Quiet hydraulic system

Haze gray epoxy and blue enamel finish (V.O.C. compliant)

Sealed spherical roller bearings on all main points

1 squaring groove in far roll

Rolls tilt for cone rolling

Rolls driven through efficient spur gear drives or planetary speed reducers

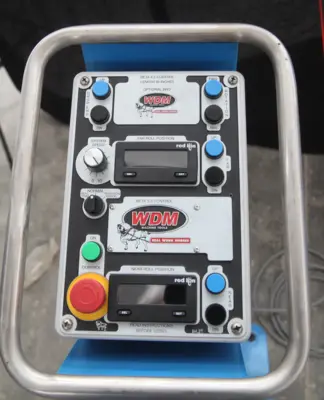

Roving pendant control

DRO to show roll position

Hydraulically actuated drop-end

Accurately machined, compact, streamlined, and all welded steel frame

Variable roll speed 0-22 FPM

1 year warranty

Made in USA
