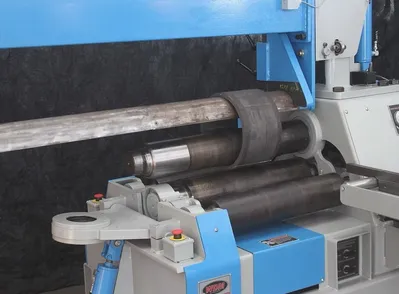

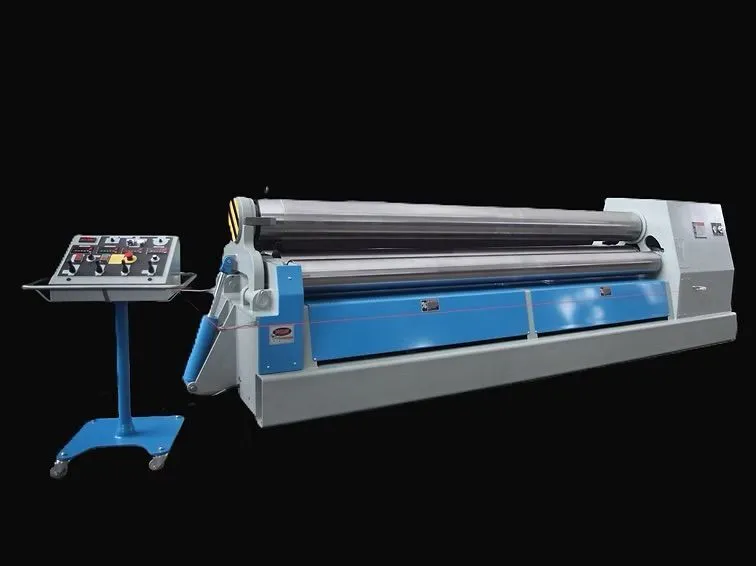

NEW WALDEMAR WDM 403

The 403 Series 4-roll double pinch plate bending machine is in a sense a 3-roll initial pinch plate bending machine with an extra bending roll on the front side of the pinch rolls. The advantage of this type of machine is that it enables the operator to roll the workpiece from the leading to the trailing edge with minimal and usually negligible flats. As a rule of thumb, the flats are less than 1 1/2 - 2 times the workpiece thickness. This can be accomplished in a single pass without turning the workpiece.

Standard Features
1045 steel rolls machined to T63 micro inch finish

Crowned rolls

Total hydraulic operation

Instant start/stop/reverse

2 roll drive

3 phase 230/460 volts 60hz electrics

Electrics to NFPA-79 specifications

24VDC control circuit

Safety/emergency stop cable on 3 sides of the machine.

Overload protected

TEFC main motor

Quiet hydraulic system

Haze gray epoxy and blue enamel finish (V.O.C. compliant)

Sealed spherical roller bearings on all main points

Bending rolls tilt for cone rolling

DRO to show roll position

Roving pendant control

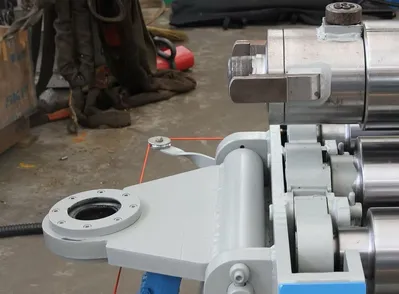

Hydraulically actuated drop-end

Accurately machined, compact, streamlined, and all welded steel frame

Rolls driven direct via hydraulic motor or gear speed reducers

Variable roll speed 0-22 FPM

1 year warranty

Made in USA
