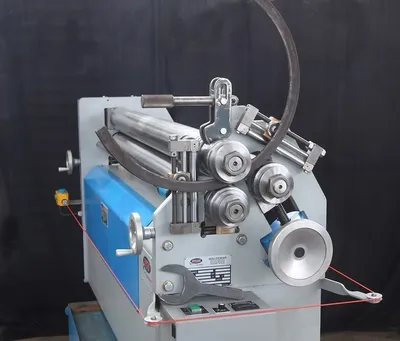

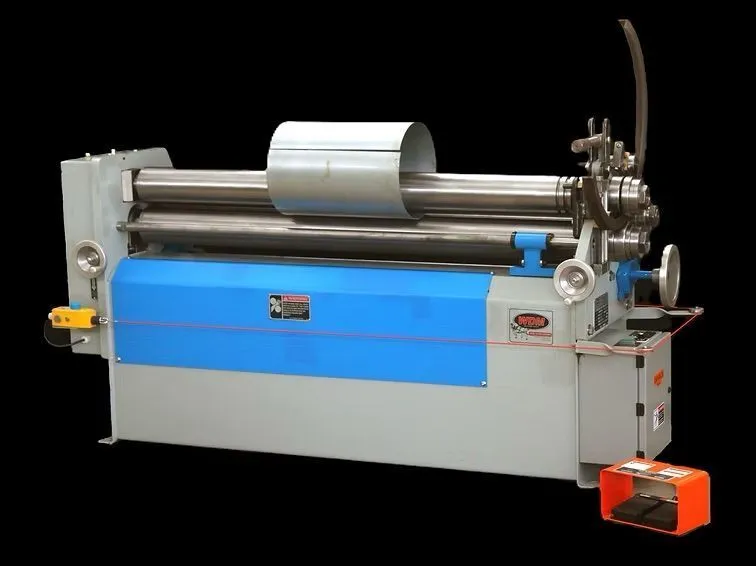

NEW WALDEMAR WDM 310

310 Series
The WDM 310 Series are an initial pinch plate machine built primarily for the sheet metal industry and small maintenance shops.

Standard Features
1045 steel rolls machined to T63 micro inches

Crowned rolls

Total electric operation

Near instant start/stop/reverse

Forward & reverse guarded foot switch for roll rotation

Rule and pointer to show roll position

Spur gear 2 roll drive

3 phase 230/430 volts 60hz electrics

Electrics to NFPA-79 specifications

24VDC control circuit

Safety/emergency stop cable on 3 sides of the machine

Pinch roll starting groove

Overload protected

NEMA premium efficient electric helical gear motor with holding brake for roll rotation

Gearbox lubed for life

Heavy duty all gear drive

Haze gray epoxy and blue enamel finish (V.O.C. compliant)

Sealed ball bearings on all main points

Rolls tilt for cone rolling

Manually operated latch handle with swing out top roll

Accurately machined, compact, streamlined, and all welded steel frame

Variable roll speed 0-20 FPM

Made in USA
