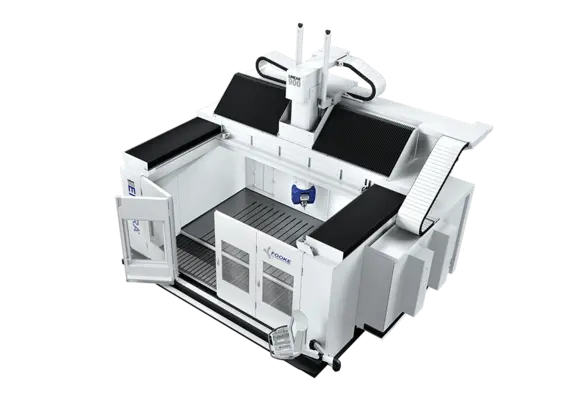

NEW FOOKE ENDURA 900LINEAR

Large machining area, small installation surface, can be set up without foundation
Direct drive motors in all axes (linear and torque motors)
High structural rigidity, highest dynamics and accuracies
Thermal decoupling of short-term temperature fluctuations by Thermo Guard
Travels up to 9,000 x 3,500 x 1,500 mm
Range of materials: steel, cast iron and aluminum

Traverse paths

X-axis: 2,500 / 4,000 / 5,500 mm

Y-axis: 3,500 mm

Z-axis: 1,500 mm

Feed rates

X-axis: 5 - 65,000 mm/min

Y-axis: 5 - 65,000 mm/min

Z-axis: 5 - 65,000 mm/min

Acceleration up to 5 m/sec²

Position accuracy

X-axis: 0.015 mm

Y-axis: 0.015 mm

Z-axis: 0.015 mm

Position scatter

X-axis: 0.010 mm

Y-axis: 0.010 mm

Z-axis: 0.010 mm
