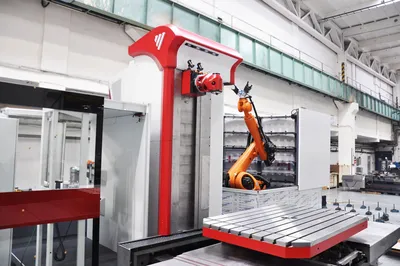

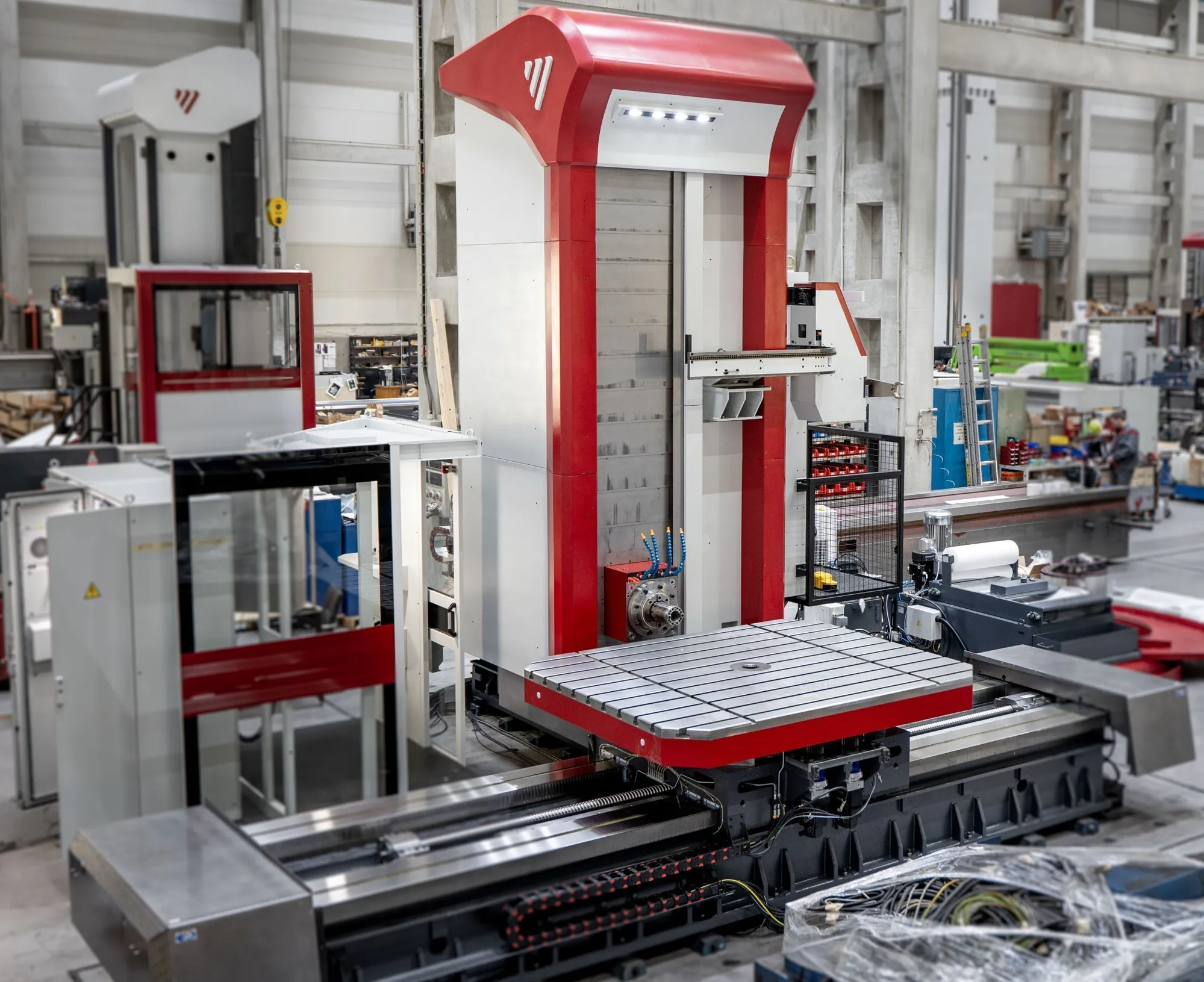

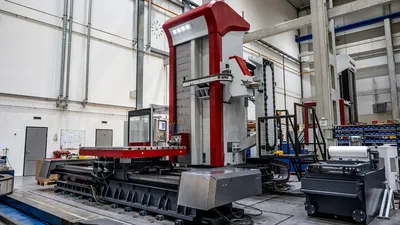

NEW LUCAS WFT 13 (R,L) CNC

Most popular FERMAT table-type horizontal boring mill, for high-performance machining with maximum utilization of accessories and automatic milling heads for efficient machining of workpieces of up to 44 093 lbs / 20 tons. Spindle diameter 5.1 in / 130 mm, spindle travel 31.5 in / 800 mm. Optional ram stroke 27.6 in / 700 mm. Extremely versatile series of table-type horizontal boring mills, fully compatible with a wide range of accessories and automatic milling heads. Version with linear guideways (WFT 13 L) and/or with ram (WFT 13 R).

Powerful and precise milling, coordinate drilling, boring, and threading.

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.

Units
WFT 13
WFT 13 R, L
Spindle Diameter
in
5.1
mm
130
Spindle Taper
SK 50 / CAT 50 (DIN, MAS 45°, ANSI)/BIG+/HSK10)
Spindle Speed (max.)
rpm
V130 - 3 400 (opt. 4 000)
Main Power Heidenhain or SIEMENS CNC (S1/S6)
hp
54.9 / 82.5; 71.1 / 104.5
