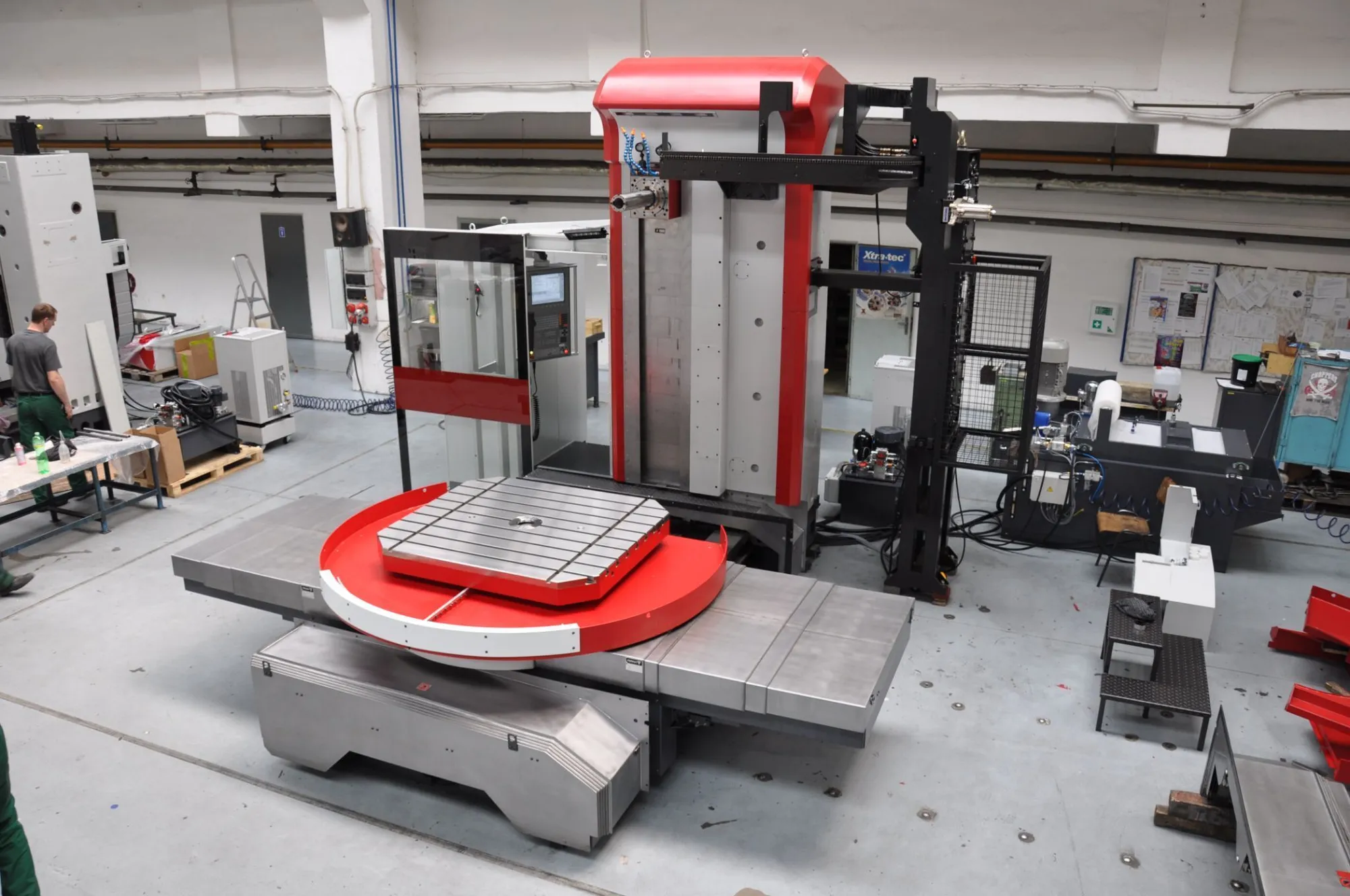

NEW LUCAS WFC 10/11 (L) CNC

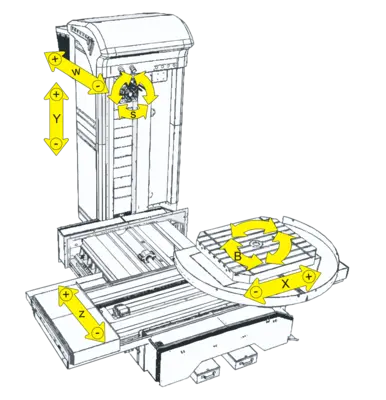

WFC is a continuously controlled table-type machine with cross table and stationary column, ideal for machining pieces of up to 11 023 lbs / 5 tons. Spindle diameter 3.9 in / 100 mm or 4.3 in / 110 mm, spindle travel 28.7 in / 730 mm. CNC rotary table with two servomotor. Possible in version with linear guideways (WFC 10 L). Machine suitable for serial production and shops with limited floor space.

Economical, modern and compact solution.

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.

units
WFC 10/11
WFC 10 L
Spindle Diameter in
3.9 / 4.3
mm
100 / 110
Spindle Taper
SK 50 / CAT 50 (DIN, MAS 45°, ANSI)
Spindle Speed (max.) rpm
4 000 (opt. 5 000)
Main Power Heidenhain or SIEMENS CNC (S1/S6) hp
26.1/39.2; 40.2/61
