NEW FERMAT WRF Heavy CNC

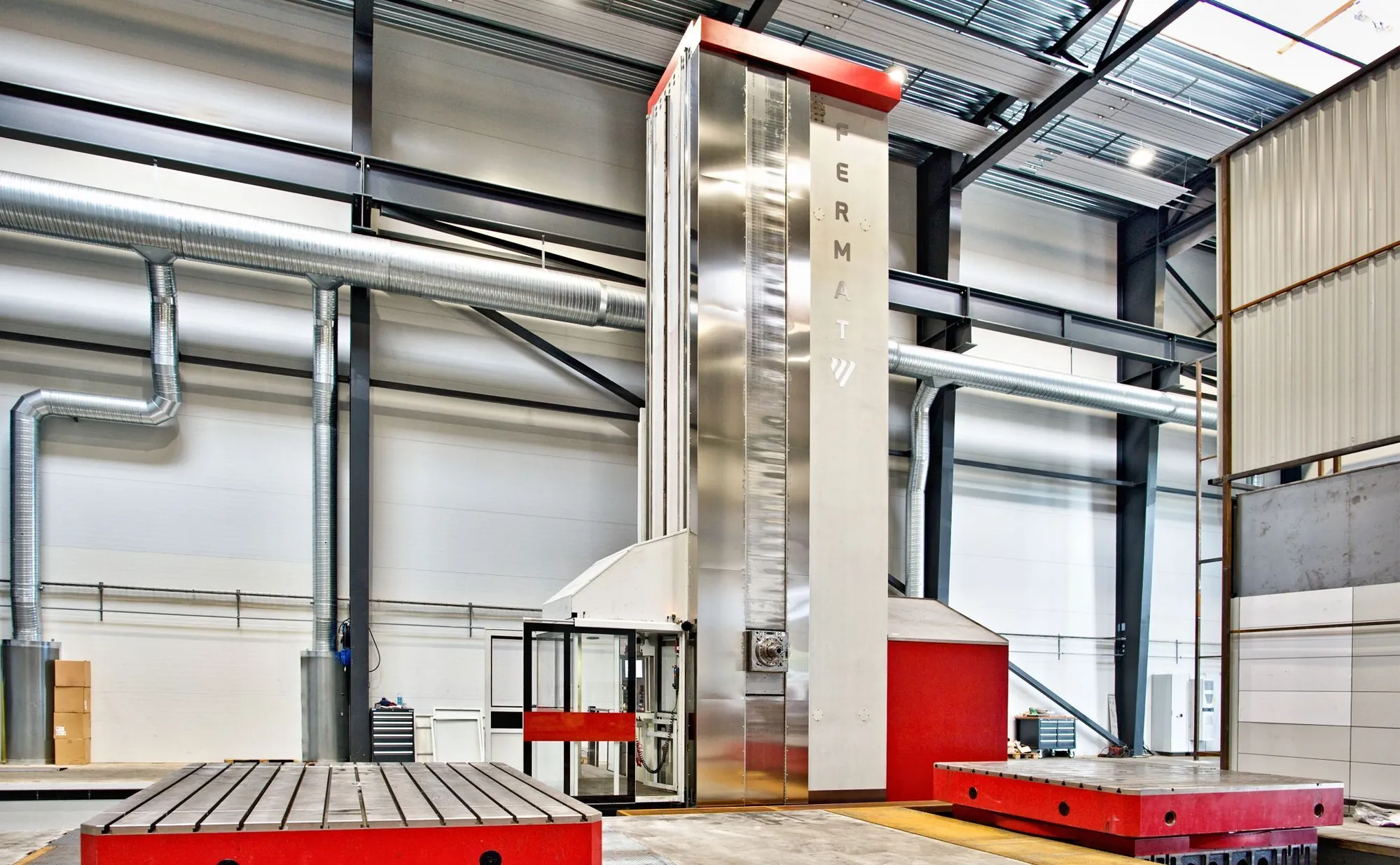

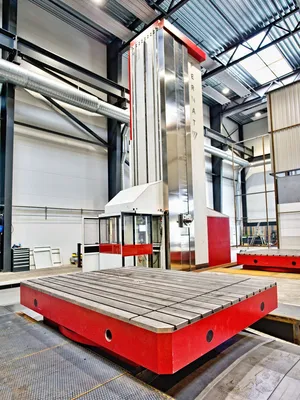

WRF 160 Heavy is FERMAT’s titan, monster-size floor-type horizontal boring mill. Sturdy headstock is built between two columns for maximum stability. Spindle diameter 5.9 in / 150 mm or 6.3 in / 160 mm, spindle extension of 39.4 in / 1 meter and ram stroke of 63 in / 1.6 meters. 4 servomotors and 4 rack and pinions are used for swift and smooth precise movement along Y axis. Equipped with floor plates and/or rotary tables that can hold up to 220 462 lbs | 100 metric ton. Ideal for oversize workpieces.

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.

units
WRF HEAVY
Spindle Diameter in
5.9 / 6.3
mm
150 / 160
Spindle Taper
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+/ HSK100
Spindle Speed (max.) rpm
2 800 (opt. 3 500) / 2 500 (opt. 3 200)
Max. Power Heidenhain or SIEMENS CNC (S1/S6) hp
101/124
