NEW LUCAS WRF 130/150/160/180 CNC
Overview
Description

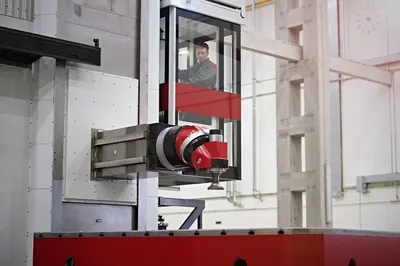

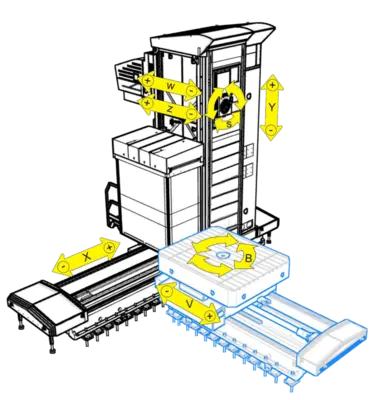

WRF is FERMAT’s large series of floor-type horizontal boring mills, excellent for powerful and precise machining of enormous, heavy workpieces. Spindle diameter of 5.1 in | 130 mm, 5.9 in | 150 mm, 6.3 in | 160 mm or 7.1 in | 180 mm; spindle travel from 31.5 in | 800 mm to 39.3 in | 1 meter. Equipped with operator’s cabin with both horizontal and vertical travel, floor plates and/or rotary tables that can hold up to 220 462 lbs | 100 tons. Optional tilting headstock.
Equipped with HEIDENHAIN, SIEMENS or FANUC control system.
Specifications
units
WRF 130
WRF 150
WRF 160 / 180
in
5.1
5.9
6.3 / 7.1
Spindle Diameter
mm
130
150
160 / 180
Spindle Taper
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
Spindle Speed (max.) rpm
3 400 (opt. 4 000)
2 800 (opt. 3 500)
2 500 (opt. 3 200) / 2 500
Max. Power Heidenhain or SIEMENS CNC (S1/S6) hp
54.9 / 82.4; 71 / 104.4
77.7 / 115; 99.2 / 146
