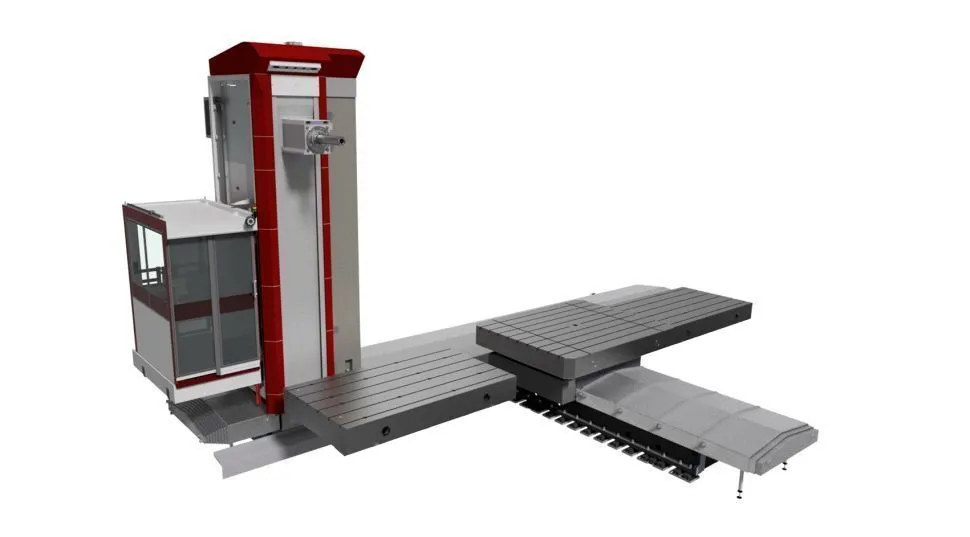

NEW LUCAS WF 13/15 R CNC

WF 13/15 R floor-type horizontal boring mill for powerful and precise, high-performance coordinate drilling, boring, and threading large and heavy workpieces. Spindle diameter 5.1 in / 130 mm or 5.9 in / 150 mm, spindle travel 31.5 in / 800 mm and ram stroke of 27.6 in / 700 mm. Machine is equipped with floor plates and/or rotary tables and it is fully compatible with a wide range of our accessories and automatic milling heads.

Equipped with HEIDENHAIN, SIEMENS or FANUC control system.

units
WF 13 R
WF 15 R
Spindle Diameter in
5.1
5.9
mm
130
150
Spindle Taper
SK 50 / CAT 50 (DIN, MAS 45°, ANSI) / BIG+/ HSK100
Spindle Speed (max.) rpm
3 400 (opt. 4 000)
3 000 (opt. 3500)
Main Power Heidenhain or SIEMENS CNC (S1/S6) hp
54.9/82.4; 71/104.4
