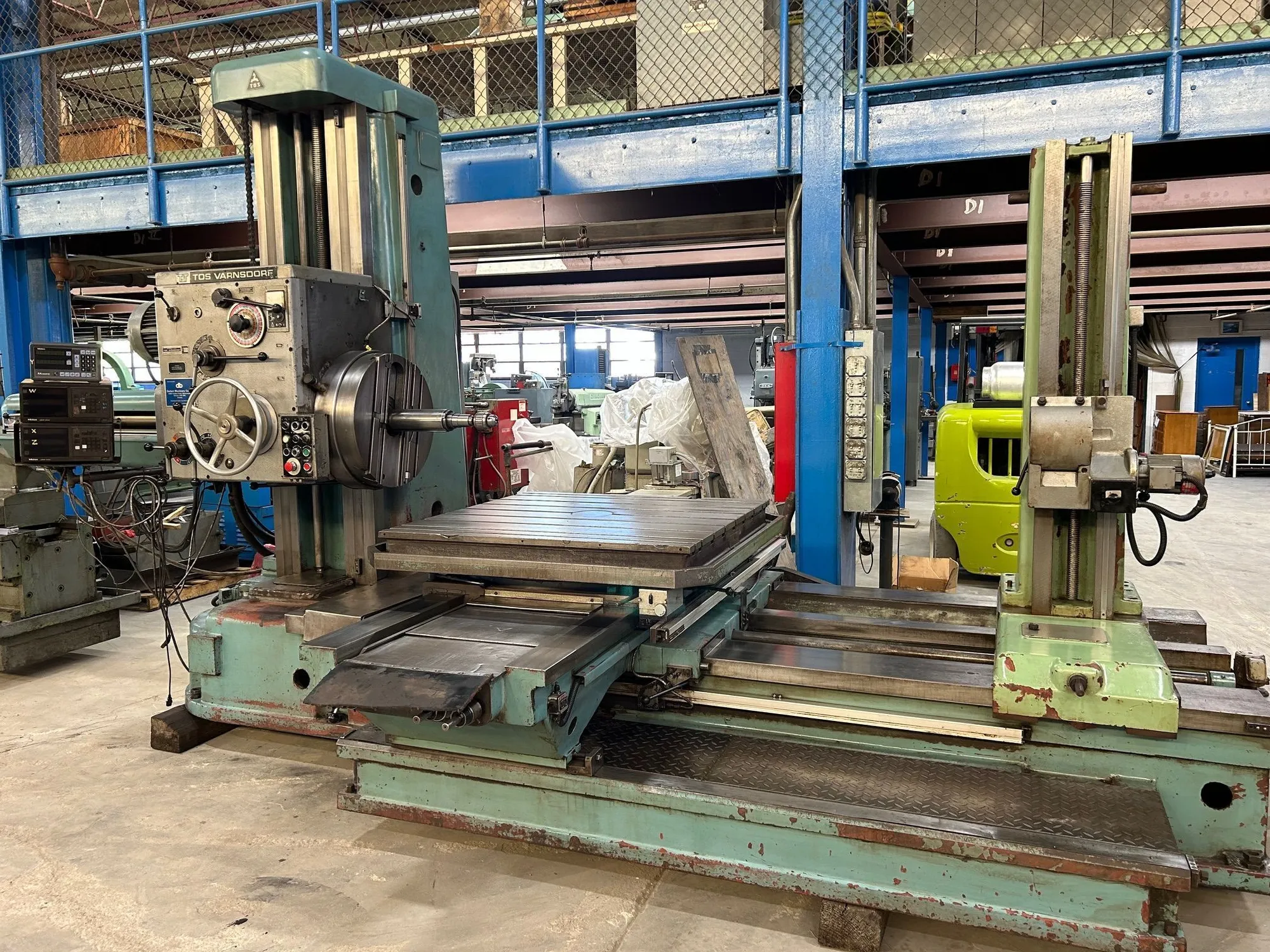

1988 TOS W100-A 4" Table Type Horizontal Boring Mill. Features: 44" vertical headstock travel, 63" table cross travel, 49" saddle travel, 49" x 49" rotary table, #50 spindle taper, 9-1120 RPM speeds, 15 HP motor and a Tailstock. Includes 3-axis Mitutoyo DRO.
| Spindle Size | 4" | 101.6 mm |
| X-Horiz Tvl of Table | 63" | 1,600.2 mm |
| Y-Vert Tvl of Head | 44" | 1,117.6 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,120 RPM | 1,120 RPM |
| Table-W | 49" | 1,244.6 mm |
| Table-L | 49" | 1,244.6 mm |
VERTICAL TRAVEL OF HEADSTOCK................................... 44"
TABLE CROSS TRAVEL............................................. 63"
SADDLE TRAVEL.................................................. 49"
BUILT IN ROATARY TABLE......................................... 49" X 49"
SPINLDE TAPER W POWER TOOL CLAMP............................... #50
SPINLE SPEEDS.................................................. 9 - 1120 RPM
MAIN MOTOR..................................................... 15 HP
3-AXIS MITUTOYO DRO
BUILT IN OUTRIGGER RAILDS
23" DIAMETER BUILT IN FACING HEAD
THREADING CABLE
TAILSTOCK
HARDWAYS
