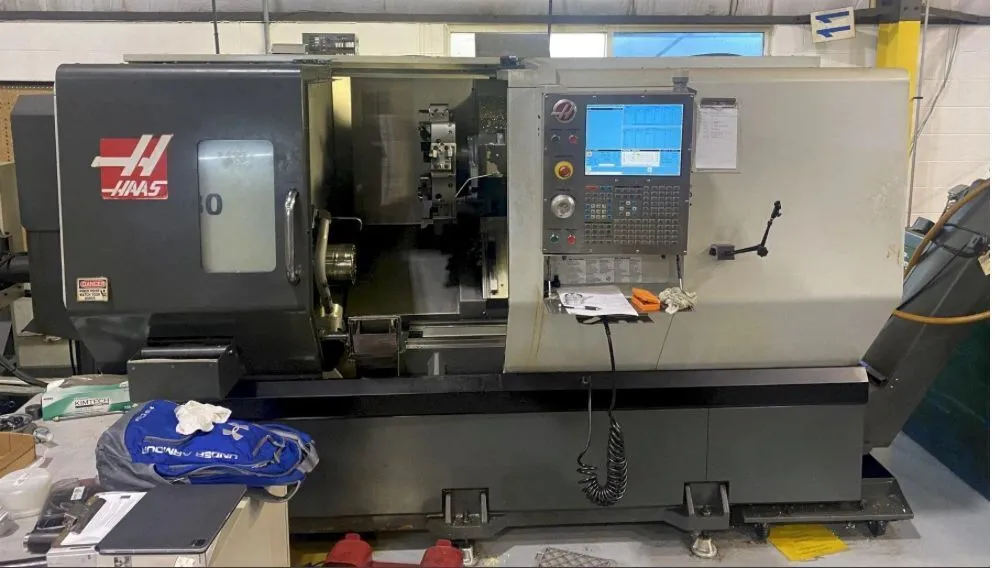

2013 HAAS DS-30 CNC Lathe with Bar Feeder offers 4-axis capability, 31.75" swing, and 18" turning diameter. Equipped with live tooling, sub spindle, parts catcher, chip conveyor, and more. Features 30 hp main motor, 8" chuck size, and 4,000 RPM max speed.
| Swing | 31.75" | 806.45 mm |
| Machining Length | 25.98" | 659.89 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 21" | 533.4 mm |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (HAAS) | CNC (HAAS) |
X Axis Travel: 12.52 in
Z Axis Travel: 25.98 in
B Axis Travel (Sub Spindle): 25.98 in
C Axis Index: 0.001°
Spindle Nose: A2-6
Spindle Speed: 4,000 rpm
Main Motor: 30 hp
Tailstock: no
Y Axis: no
Live Tooling: Yes
Live Tooling Speed: 6,000 rpm
Live Tooling Motor: 5 hp
Sub Spindle: Yes
Sub Spindle Chuck: 8 in
Sub Spindle Nose: A2-5
Sub Spindle Speed: 4,000 rpm
Sub Spindle Motor (HP): 25 hp
Turret Capacity: 12
Dimensions: 130" x 90" x 83"
Weight: 15000 lb
Haas CNC Control
IEMCA Master 880 MP Bar Feeder
Parts Catcher
Live Tooling
Collet Chuck on Main Spindle
Chip Conveyor
Coolant Tank & Pump
Rigid Tapping
