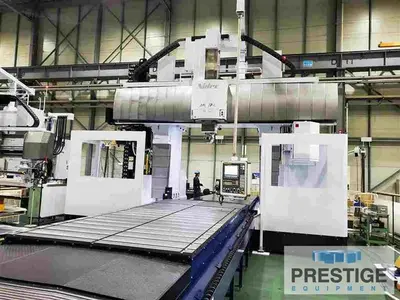

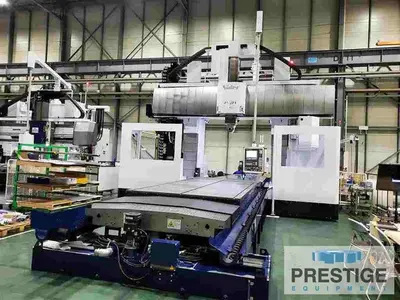

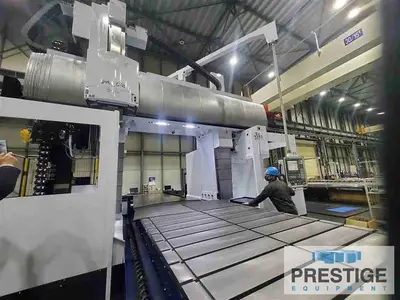

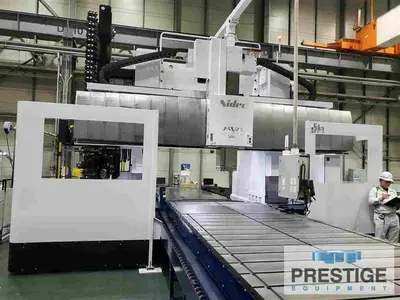

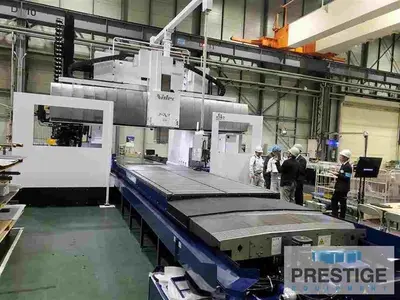

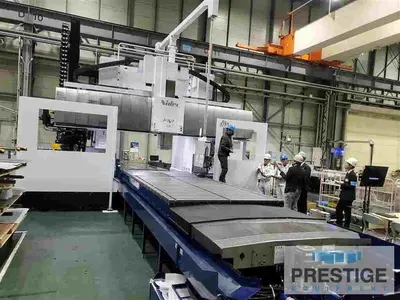

USED 2024 SNK MV30EX

CAPACITY:
X-Axis Travel (Table Longitudinal): 204.72"
Y-Axis Travel (Head): 118.11"
Z-Axis Travel (Spindle): 31.49"
W-Axis Travel (Crossrail): 43.30"
Distance Table to Spindle Nose: 64.96"
Table Size: 196.85" x 78.74"
Table Load Capacity: 66,000
Distance Between Columns: 100.39"
Ram Size: 13.77" x 13.77"
Spindle Speeds: 8,000 RPM
Spindle Taper: BT 50
Spindle Drive Motor: 40 HP / 30 HP
Rapid (X/Y-Axis): 1181 IPM
Rapid (Z-Axis): 591 IPM

Equipped With:
Fanuc 31i-A CNC Control
80-Position Automatic Tool Changer
Right Angle Head
Extension Milling Head

Features:
Fanuc 31i-A CNC Control
80-Position Automatic Tool Changer
Right Angle Head
Extension Milling Head
